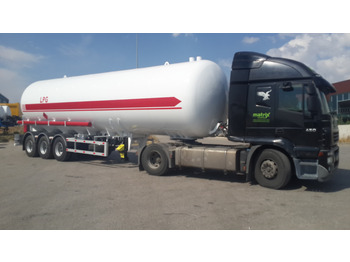

Nov Polprikolica cisterna za transport plina THOR THR-LPG-45-P

Brand : THOR TRAILER

Chassis : Half chassis made of 6252 Steel quality . Strong and Heavy Duty type.

Axles : 3 x Turkish Axles , German Tüv Approved with 14 tons capacity each.

Brakes : Drum Brakes

Suspension : Steel Suspension

Brake System : Two line brake system with WABCO ABS according to European Norms,

Automatic Slack Adjusters

Landing Legs : 24 tons each according to the European Norms

Kingpin : 2 ‘’ changeable to 3,5 ‘’ according European Standards. King Pin Plate thickness 12 mm

Tyres : 12 + 1 385/R22.5 Bridgestone with Steel Rims

Electrical System : 24 V according to European Norms. ( ADR stop lights, 5 Lights on each side )

Complete Reflectors and Signs 3M Brand , Wheel chocks, 2 x Fire Extuinguisher ADR , 2 Units Food Box, Sunshade on the Tank

Accessoires : Water Tank , Spare wheel carrier

Tank Specifications :

Project Code : AD2000 Code-PED97/23/EC

Design Temperature : Min -20 C / max. +50 C

Design Pressure : 17,16 bar

Test Pressure : 26,50 bar

Tank Material : P355 GH

Head Type : Elipsoidal

External Tank Diameter : 2.400 mm

Wall Thickness : 10 mm

Total Length of Tank : 13.200 mm

Equipments on Tank :

-2 inch Safety Relief Valve : REGO 7534G ( 2 Units )

-Rotogauge – Rotary Level Indicator ) : REGO ( 1 Unit )

-¾ inch excess Flow Valve for Manometer ( 1 Unit )

-Thermometer (-30/60 C ) : Pakkens ( 1 Unit)

-Manometer ( 0-25 bar ) : Pakkens ( 1 Unit )

-Hydraulic Operator ( 1 Unit )

-2 inch Hydraulic Valve ( 2 Units )

-3 inch Hydraulic Valve ( 1 Unit )

-2 inch Ball Valves : Batu ( 3 Units )

-2 inch Filler Flanges : M60x4 ( 3 Units )

-ACME Filler Cap : ( 3 Units )

-Filter : Batu ( 1 Unit )

-16 inch Manhole ( 1 Set )

-Earthing Bar : ( 1 Set )

Paintwork and Sandblasting :

-During painting works of the external tank surface , it will be cleaned properly from any burr, hollow ,oil and dirt.

-Following the cleaning works, sanding will be applied to obtain surface appearance of SA 2 ½ quality.

-Roughness Value of the Surface will be 50 – 70 Rz

-As First coat will be applied epoxy paint base with surface tolerance and dry film thickness of 180 micron

-As the second coat , arcylic polyurethane top layer with high resistance with a dry film thickness of 70 micron

-Final Coat color of the Tank will be white ( RAL 9010 )

-Total Paint Thickness will be 250 microns

Radiographic Tests :

-Welding Seams of the tank will be subject to radiographic control by 100 % longtidunal values .

-Radiographic images will comply with the EN 1435 standard.

-The Relevant staff will be certified according to EN473.

-Radiographic examinations will be made through high-sensitive , panoramic and linear X-Ray devices.

-These controls will be executed by certified staff

Penetration Test or Magnetic Particle Test :

-Nozzle _Body and Manhole – Body Welds will be controlled through penetration or magnetic particle testmethod by 100%

Hydrostatic Test :

-Following the construction , the tanks will be subject to hydrostatic test as per the design rules and standards.

-During hydrostatic Test , clean and fresh water will be used.No Liquid which may react to the tank materials will be usedfor hydrostatic test.

-In case the water and ambient temperature is below 15 C, the hydrostatic test will be not performed

-The Hydrostatic test will be accompanied by the independent certification body TURK LYOD .

-Following the hydrostatic test, inside and all internal Pipes of the Tank will be dehydrated.

-Inside of the Gas will be purged with gaseous nitrogen.

Certification :

-The tank will hold a branding / ‘’ Inspection Report and Certificate’’ issued by an international independent auditcompany ( Turk Lyod ) according to the European directive.

-Quality Plan and F Module Certificate

-Inspection Report and Certificate

-Quality Plan

-Sheet Orientation , Material List, Material Certificates

-Material Orientation Plan

-Material List

-Sheet , pipe and flange certificates

-Certificates of the welding materials

-Welding Method Instructions ( WPS )

-Welding Method Tests ( PQR )

-Welder Certificates and Welding Plan

-Plain seaming of the Body Sheet ( WPS )

-Circumferrential welds of the Body ( WPS )

-Nozzle – Body – Manhole Weldings ( WPS)

-Pipe – Pipe,Pipe-Flange Weldings ( WPS )

-PQR

-Welder certificates

-Welding plan

-Dished Heads Reports, Head Treatment Graph and Report

-Dished Heads control report

-Dished Heads magnetic test report

-Heat treatment graph and report

-Welding Test reports of the Construction

-Longitudanl welding seams

-Circumferential welding seams

-Non-destructive test reports

-Eye and measure control report

-Dye penetrant test reports

-Radiography reports

-Hydrostatic Test Report

-Name Plate , Fixture Certificates

-Carbon copy of name plate

-Carbon Copy of the 3 rd party embossed stamp

Baffles :

-Tank will have three Units of Anti-Slosh baffles
