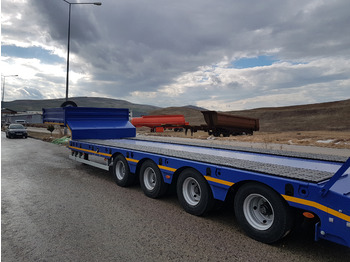

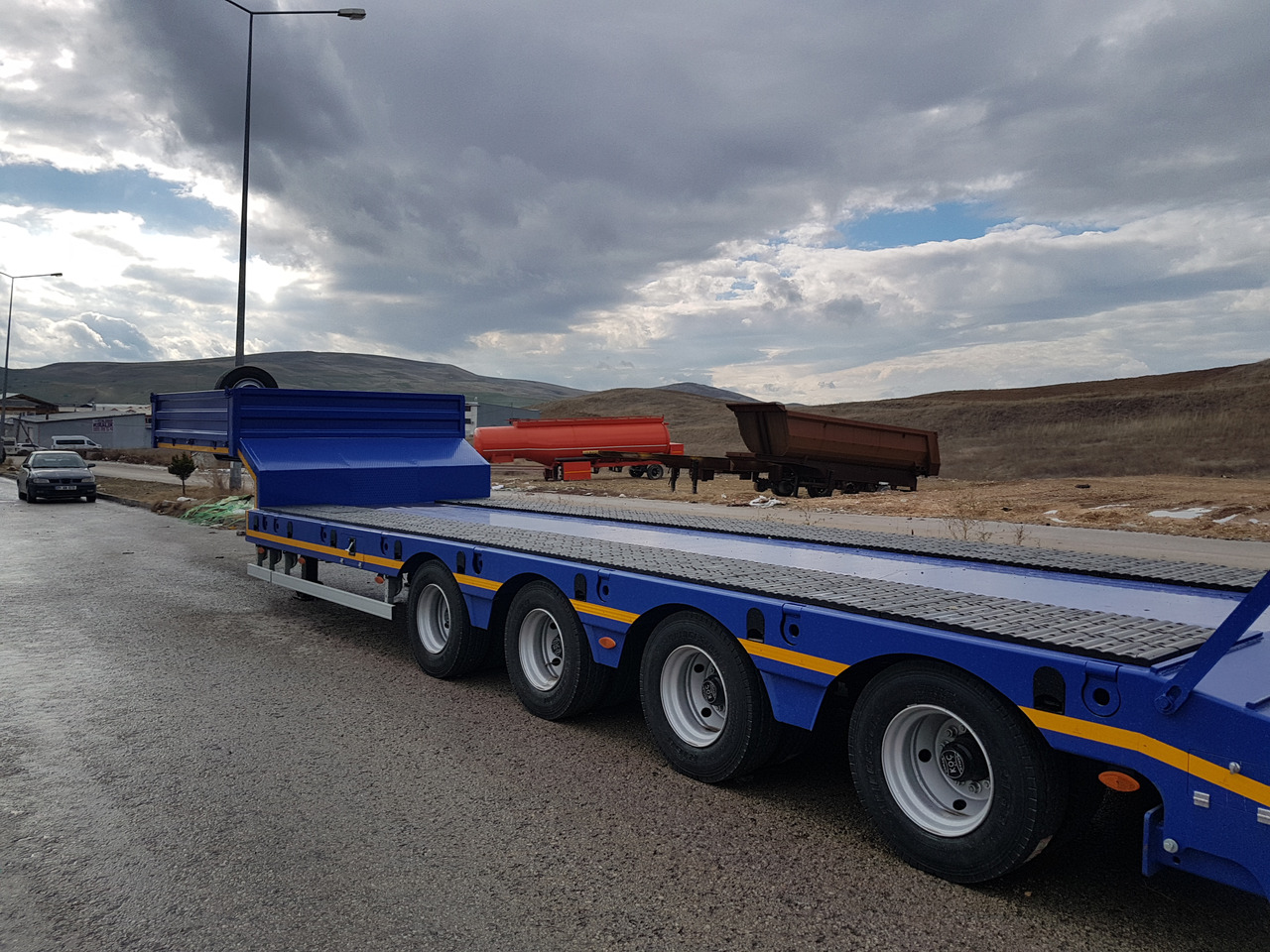

Nov Nizko noseča polprikolica THOR THR-4-LW-12

Chassis : :Longitudinal members of Cold Rolled and Welded Beams and cross members of hot rolled/ pressed steel channels of Grade ST 52-3.All other pressed steel channels / Plates of Grade ST 37-2.

Gooseneck : Gooseneck with Sidewalls

Deck : Floor 6/8 mm Chequer plate supported by suitable pressed steel cross members.

Ramps : Hydraulic Back Ramps

Axles : 4 Axles , Air Suspension , 12 tons per Axle

Tyres : 16 +1 nos 235/65R17.5 Bridgestone or equivalent tires.

Rims : 16 +1 nos Steel disc rims.

Brakes : EBS- System KNORR , Haldex Brake Adjuster Wabco Twin line brakes, acting on all wheels

With ‘S’ cam actuation. two single acting Diaphragm brake chambers per axle Service& Emergency Relay valves

Automatic load sensing valve Air reservoir.

King pin size : Jost (Germany) two position 2 dia to SAE Standard. Changeable with bolts Also changeable to 3 1/2 dia to SAE

Lashing rings : 5 nos. Lashing rings on either side of lowbed

Electrical : 7 way quick release ISO connector, pair of 24 volt rear light Units, each comprising tail light, brake and signal light fitted at rear Aspock or equivalent.

Accessories : 1 no. tool box on goose neck Choke Blocks, Reverse Horn & Lights

Painting System : Grit blasted to S.A.2.5 : One coat of Zinc rich epoxy primer and top coat of high gloss :Polyurethane finish paint in single color (customer choice)

Warranty : One year from the date of delivery of product from all manufacturing defects.
