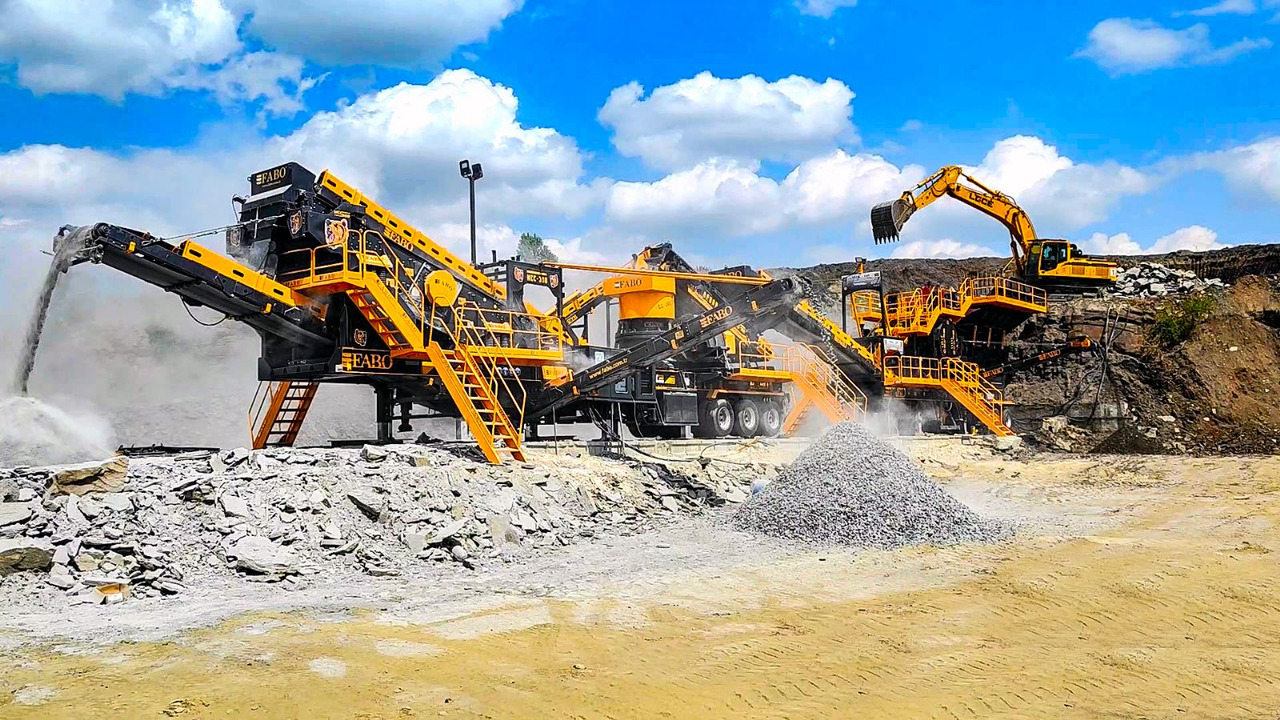

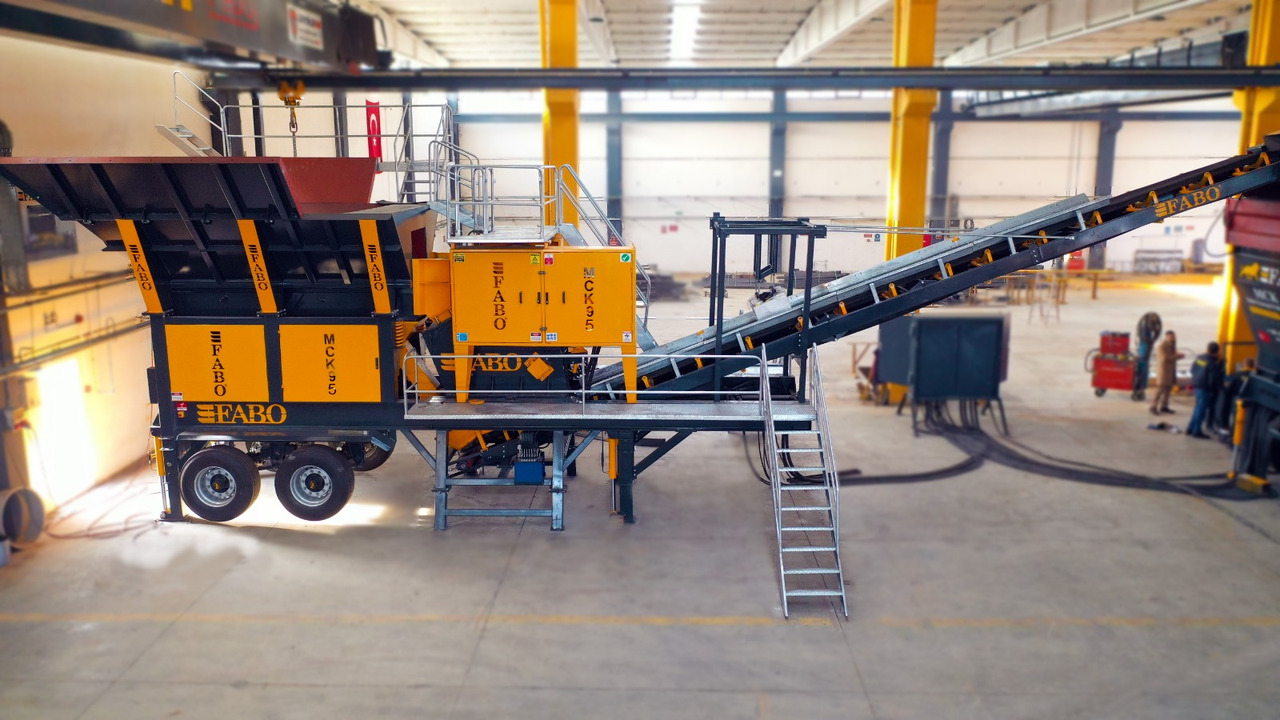

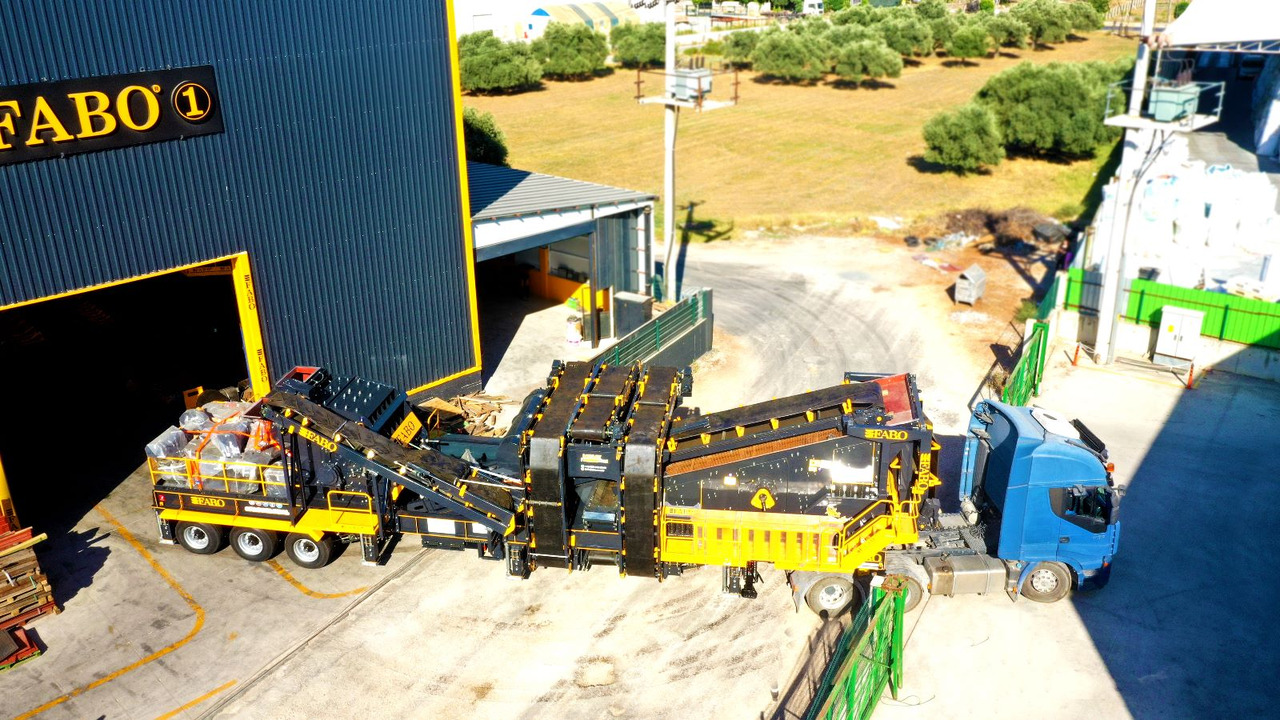

FABO MCK-95 is a middle model of MCK series, those are a mobile type & closed circuit crushing and screening plants that is used for processing of hard materials such as basalt, granite, gabbro, dolomite and other types of hard stones. MCK-95 includes two stages of crushing process which is made by primary jaw crusher and cone crusher.

TECHNICAL SPECIFICATIONS:

- Bunker: 20 m3

- Plant Dimensions (1st chassis): 11500x4600x4200 mm

- Second chassis: 15500x4650x4400 mm

- Production Capacity: 100-180 Tons Per Hour

- 1st Crusher: Jaw Crusher – 900x650 mm

- 2nd Crusher: Secondary Cone Crusher – FABO CC 200

- Maximum Feeding Size: 600 mm

- Vibrating Screen Size and Deck: 1700x4500mm 3-4 decks

- Total Motor Power: 315 Kw

- Generator (optional): 400 kvA

MCK-95 IS A COMBINATION OF:

• Bunker(Hopper)

• Vibrating Grizzly Feeder (bypass)

• Primary Jaw Crusher

• Cone Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)
