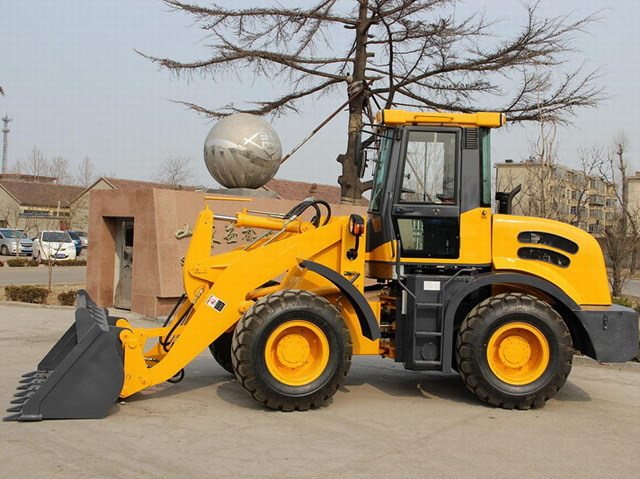

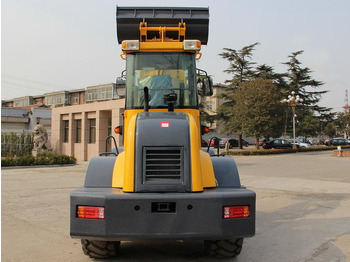

Nov Kolesni nakladalec Qingdao Promising China 2.0T Front Wheel Loader ZL20F with CE

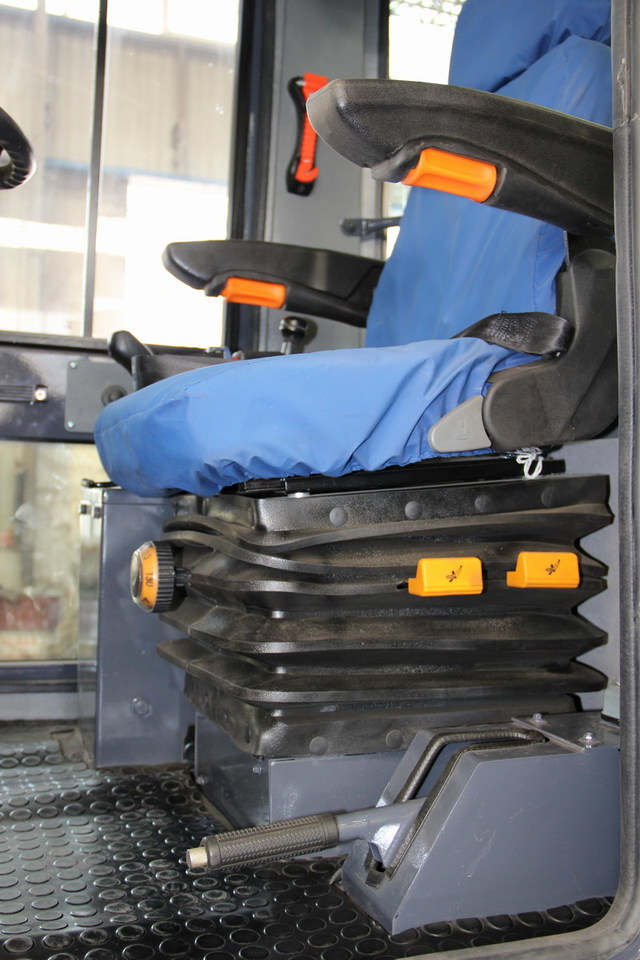

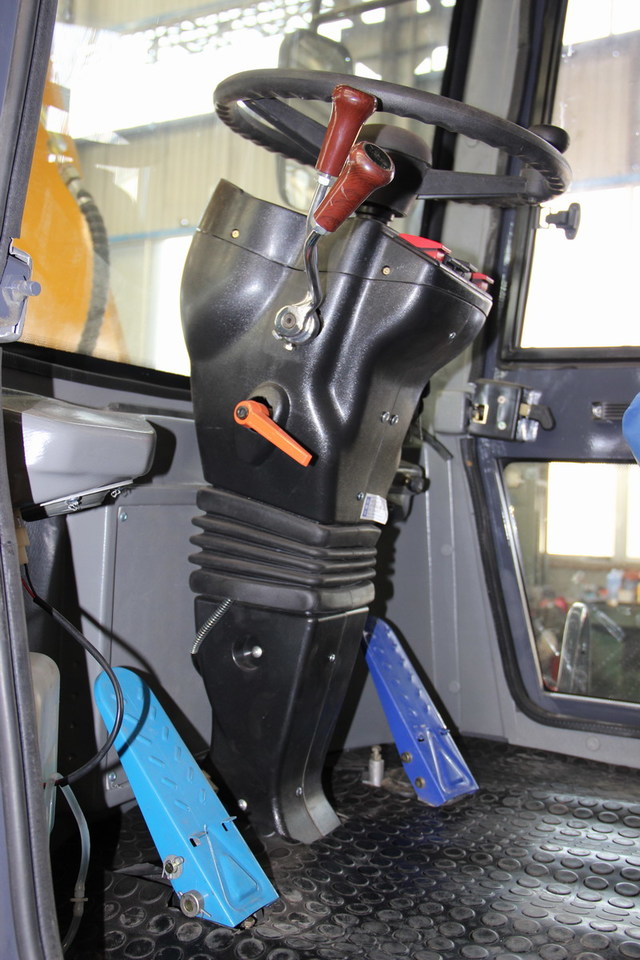

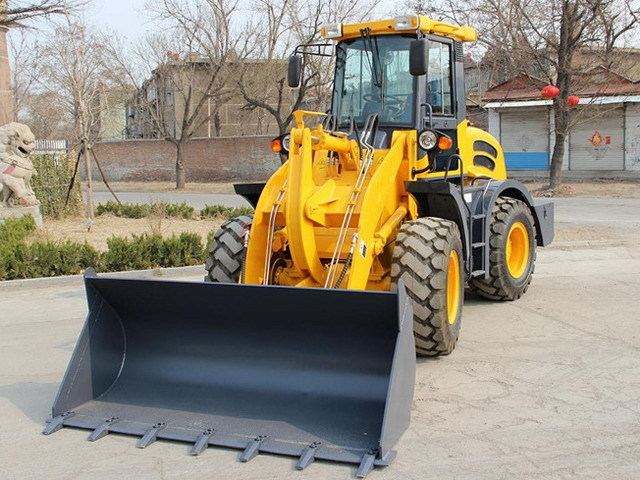

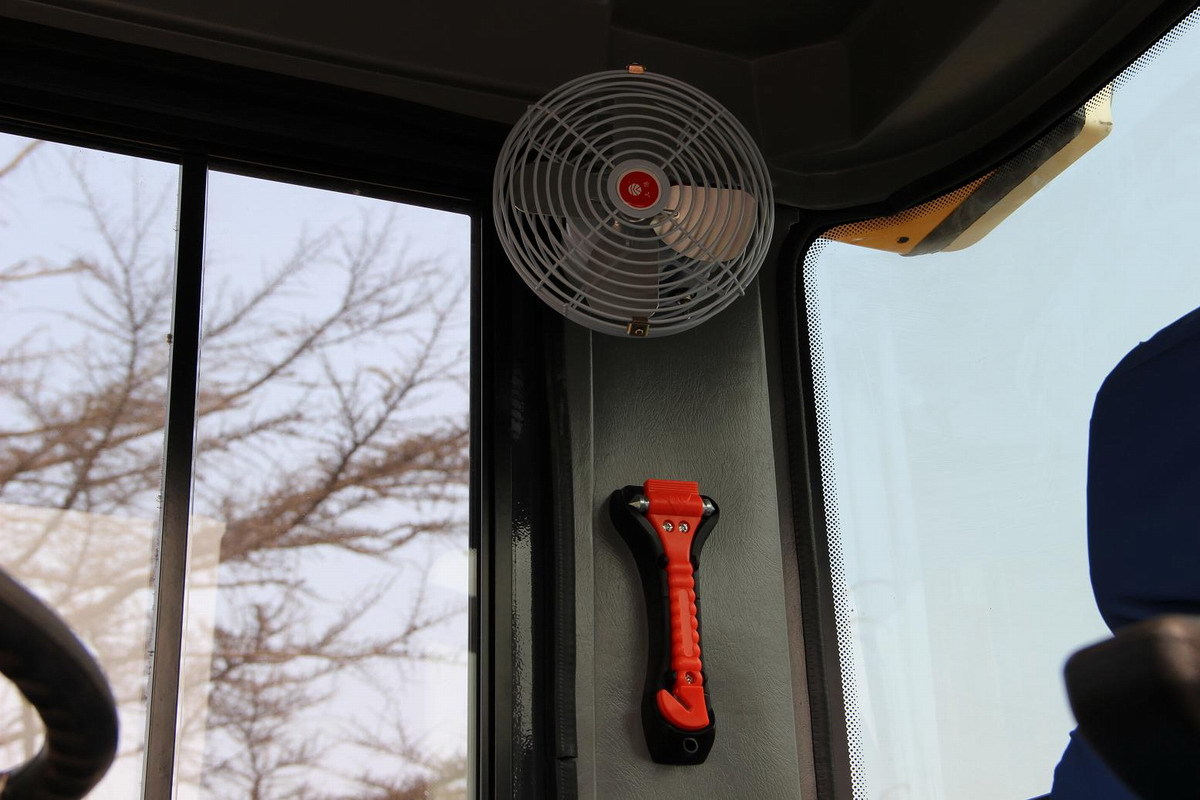

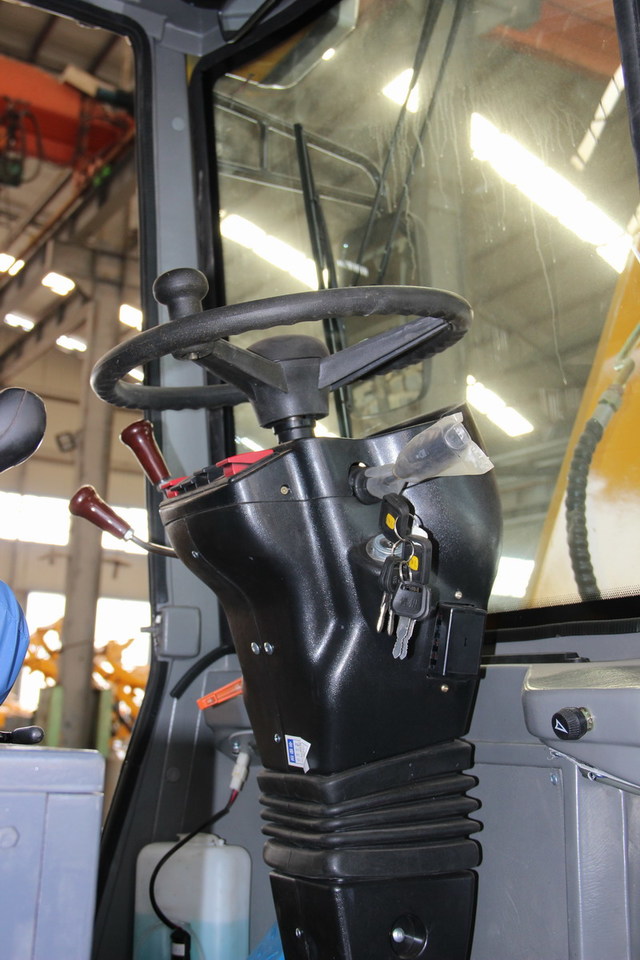

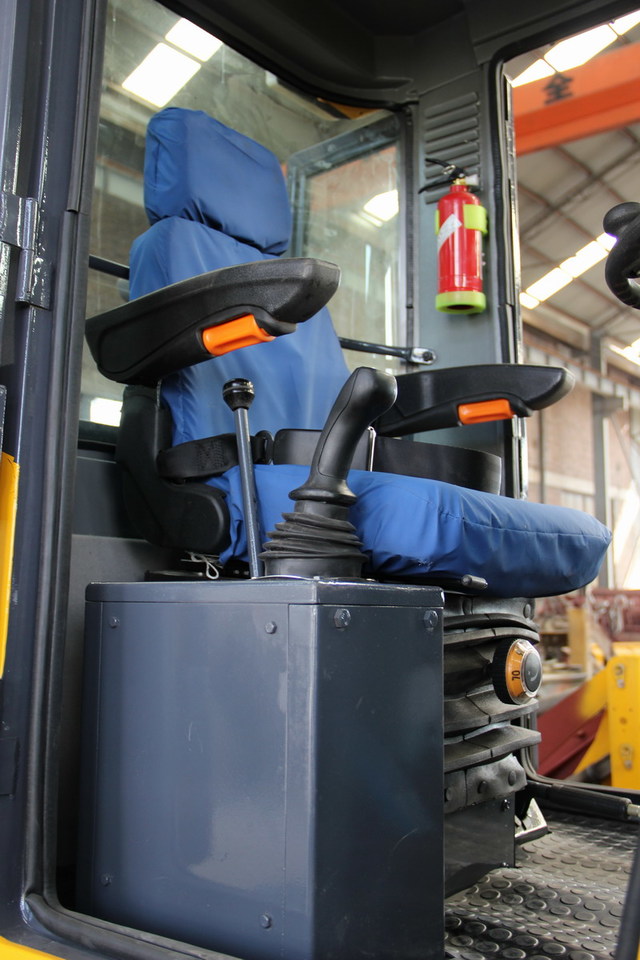

2 ton front wheel loader with heavy-duty bucket with bolt on teeth, enclosed cabin with adjustable suspension seat and digital radio & MP3 player, mechanical joystick, top beacon; and optional hydraulic joystick control, hydraulic quick attach and air conditioning, float function and multiple optional loader attachments

2.0T Front Wheel Loader ZL20F with CE

Technical Specifications

1. Rated Load: 2000kg

2. Operating Weight: 5900kg

3. Rated Bucket Capacity: 1.0CBM

4. Bucket Width: 2150mm

5. Max. Breakout Force: 60KN

6. Max. Dumping Height: 2800mm

7. Max. Dumping Reach: 1050mm

8. Raising Time: Less than 5.0s

9. Min. Ground Clearance: 350mm

10. Overall Dimensions (L x W x H): 5800x2000x2750mm

11. Min. Turning Radius: 4600mm

12. Engine Model: DONGFANGHONG YT4B2-24

13. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine

14. Rated Engine Power: 60kW (81.5HP)

15. Rated Engine Speed: 2400rpm

16. Min. Fuel Consumption Rate: 251.6g/kW.h

17. Transmission Mode: ZL280 Integrated Hydraulic Torque Converter

18. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

19. Max. Speed: 25km/h

20. Mode of Axle: ZL20 Hub Reduction Drive Axle

21. Wheel Tread: 1500mm

22. Wheel Base: 2350mm

23. Drive Mode: 4-wheel Drive

24. Hydraulic System Working Pressure: 20Mpa

25. Hydraulic System Working Pump Type: Gear Pump

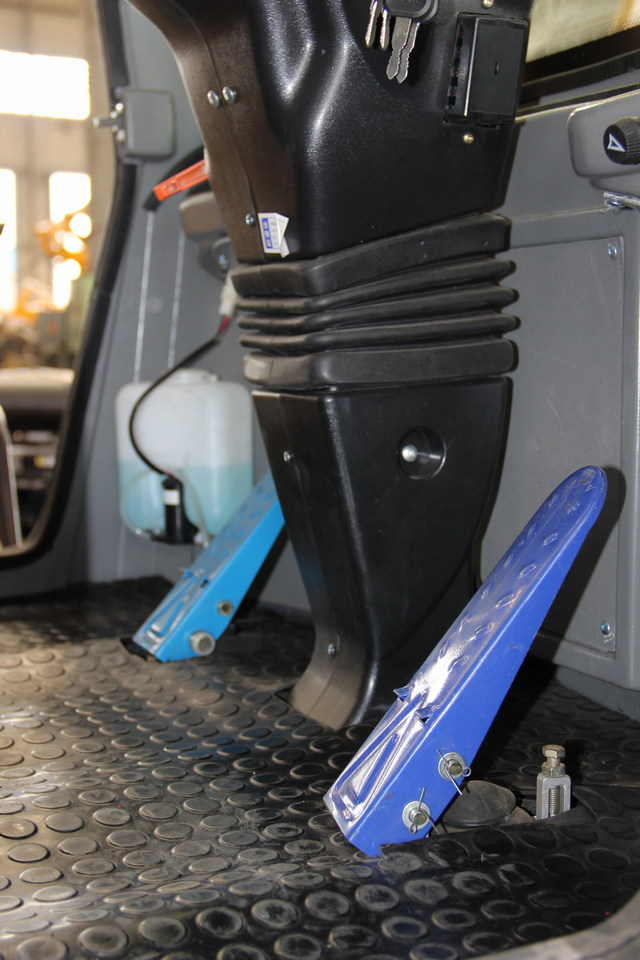

26. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Disc Brake on 4 Wheels

27. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

28. Tyre Type Specification: 16/70-20-16PR

29. Front Tyre Pressure: 0.40Mpa

30. Rear Tyre Pressure: 0.35Mpa

Optional EURO5 Engine: 55kw YUNNEI DEF20CAF4 Engine

Optional Parts and Functions:

Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Hydraulic Joystick, Air Conditioner, Color Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Hydraulic Quick Hitch, Extra Hydraulic Lines, LED Lights, and Float Function, etc.

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

5. For all available loader attachments, please refer to our Loader Attachments Catalogue.

6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
