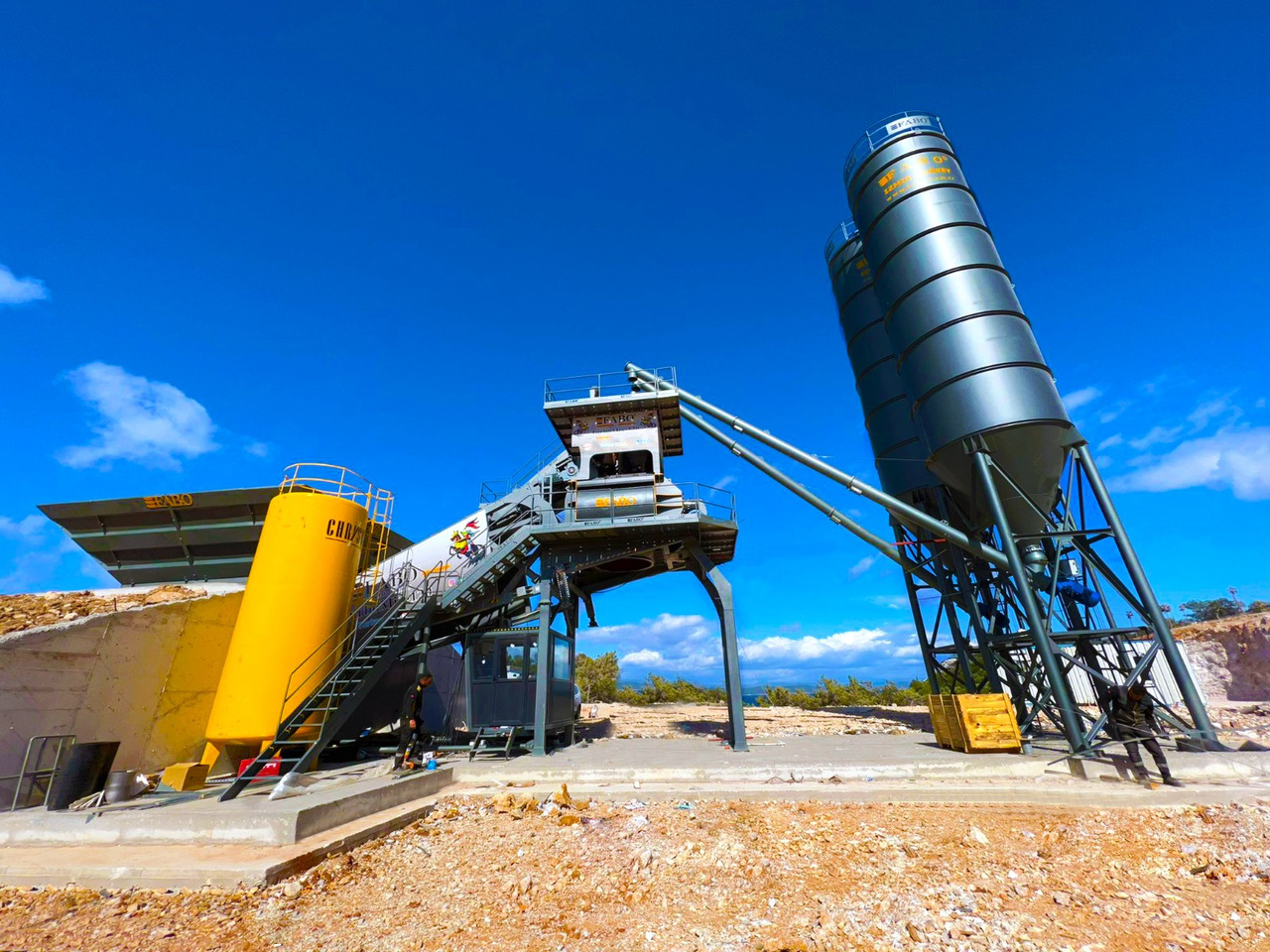

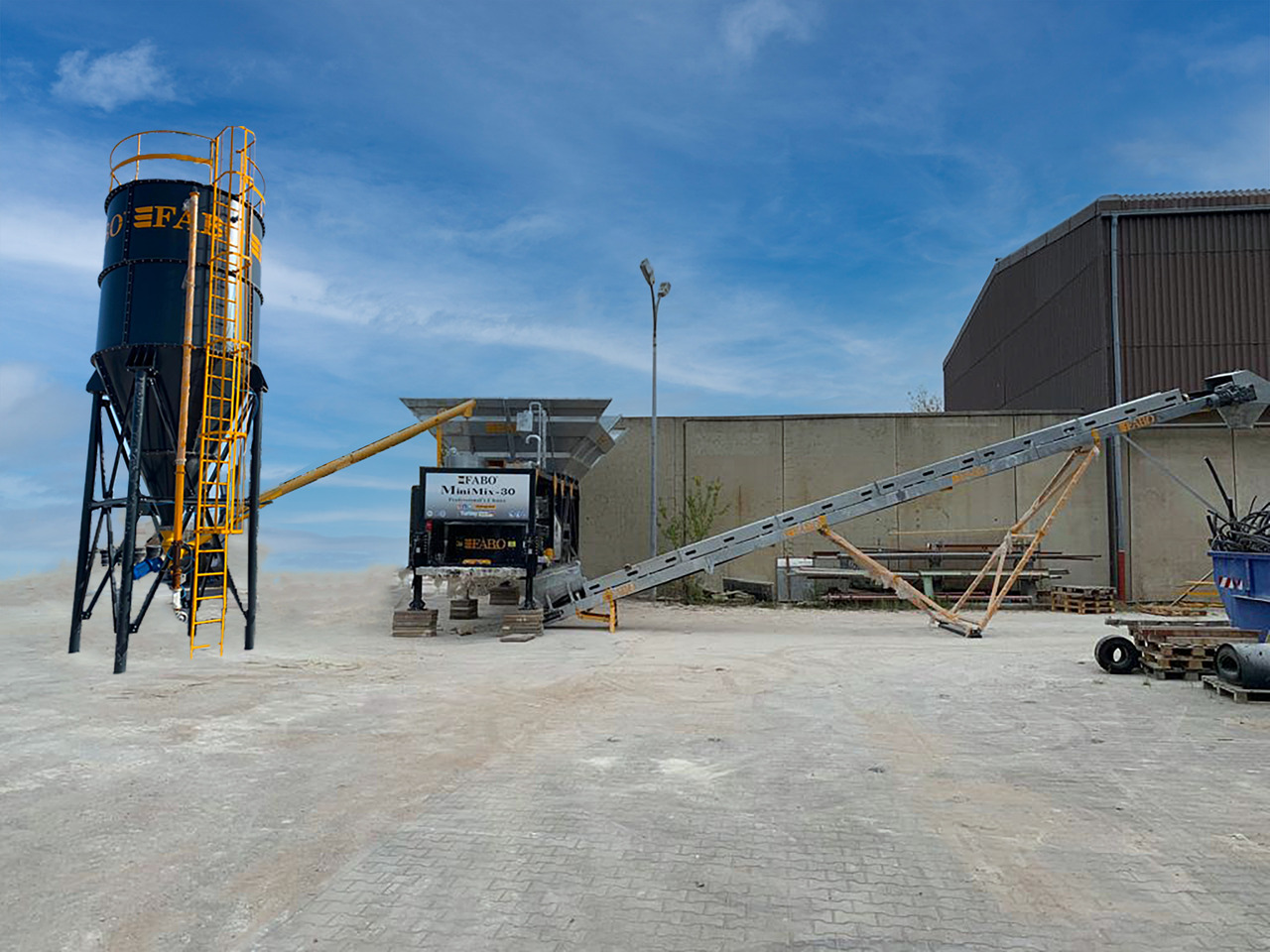

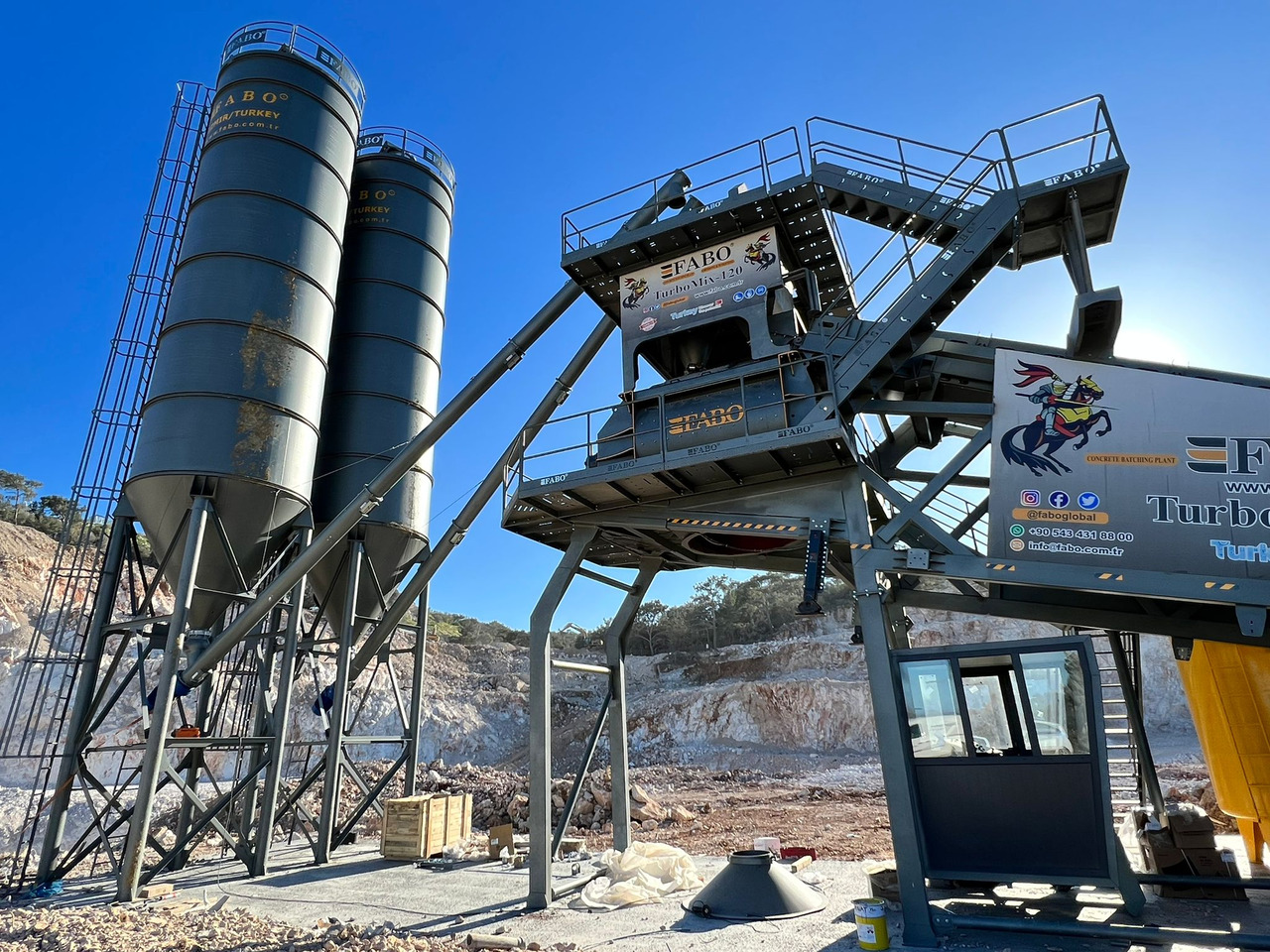

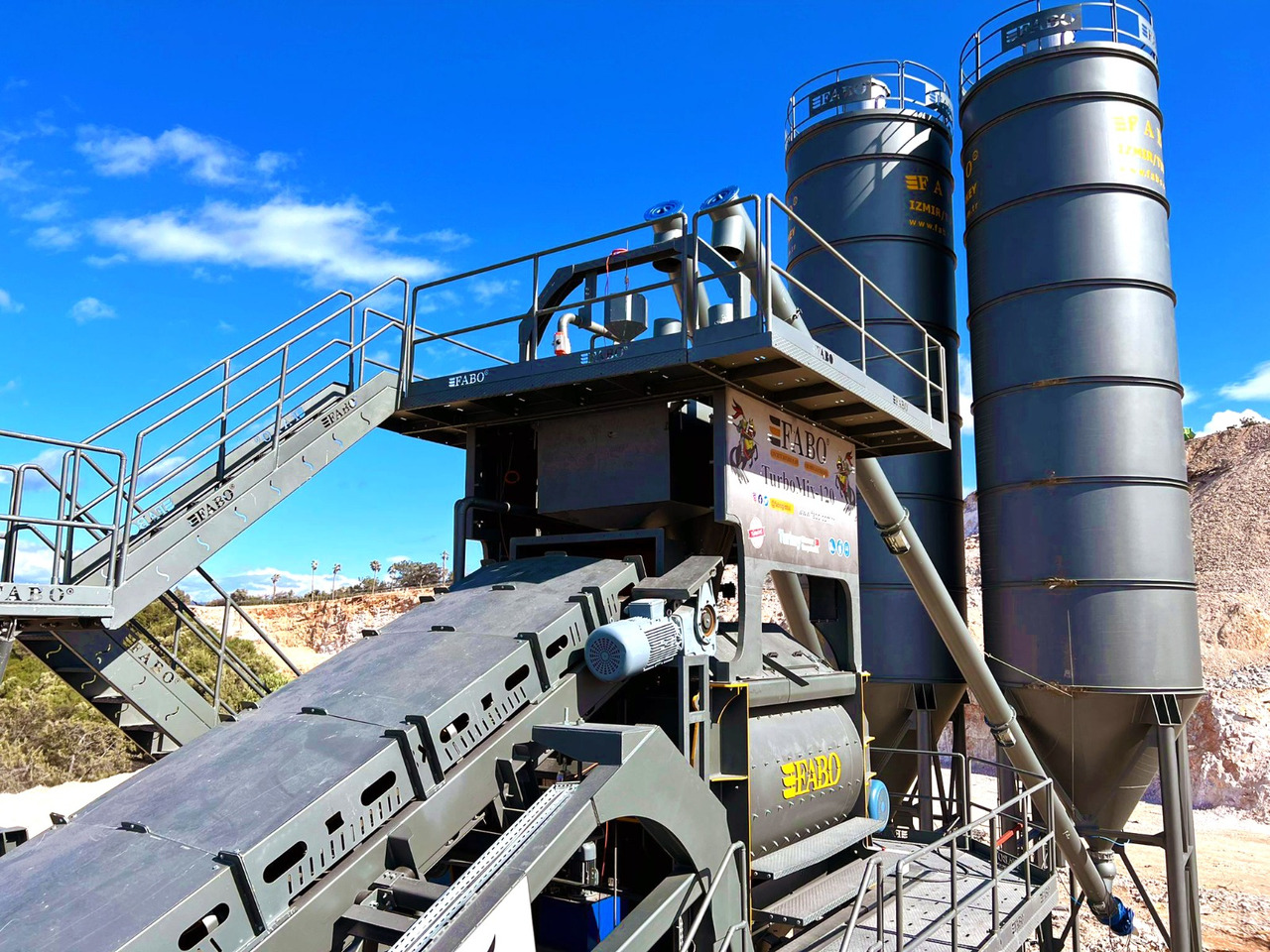

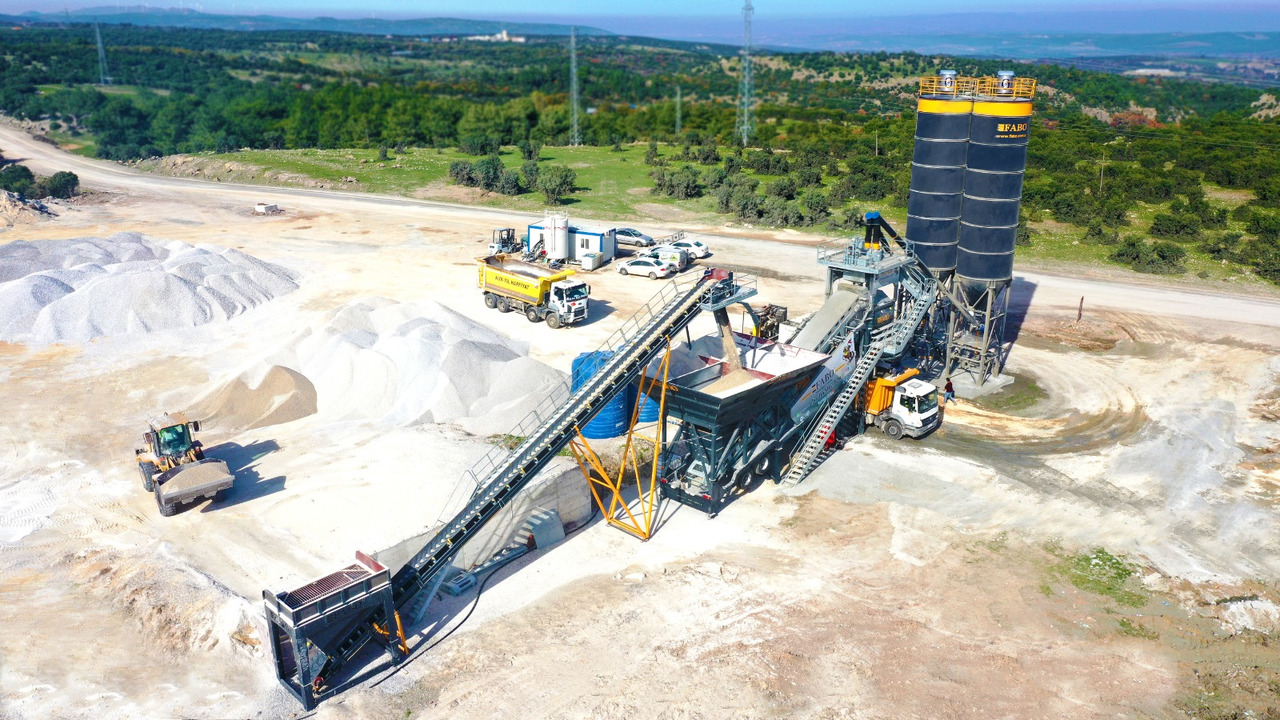

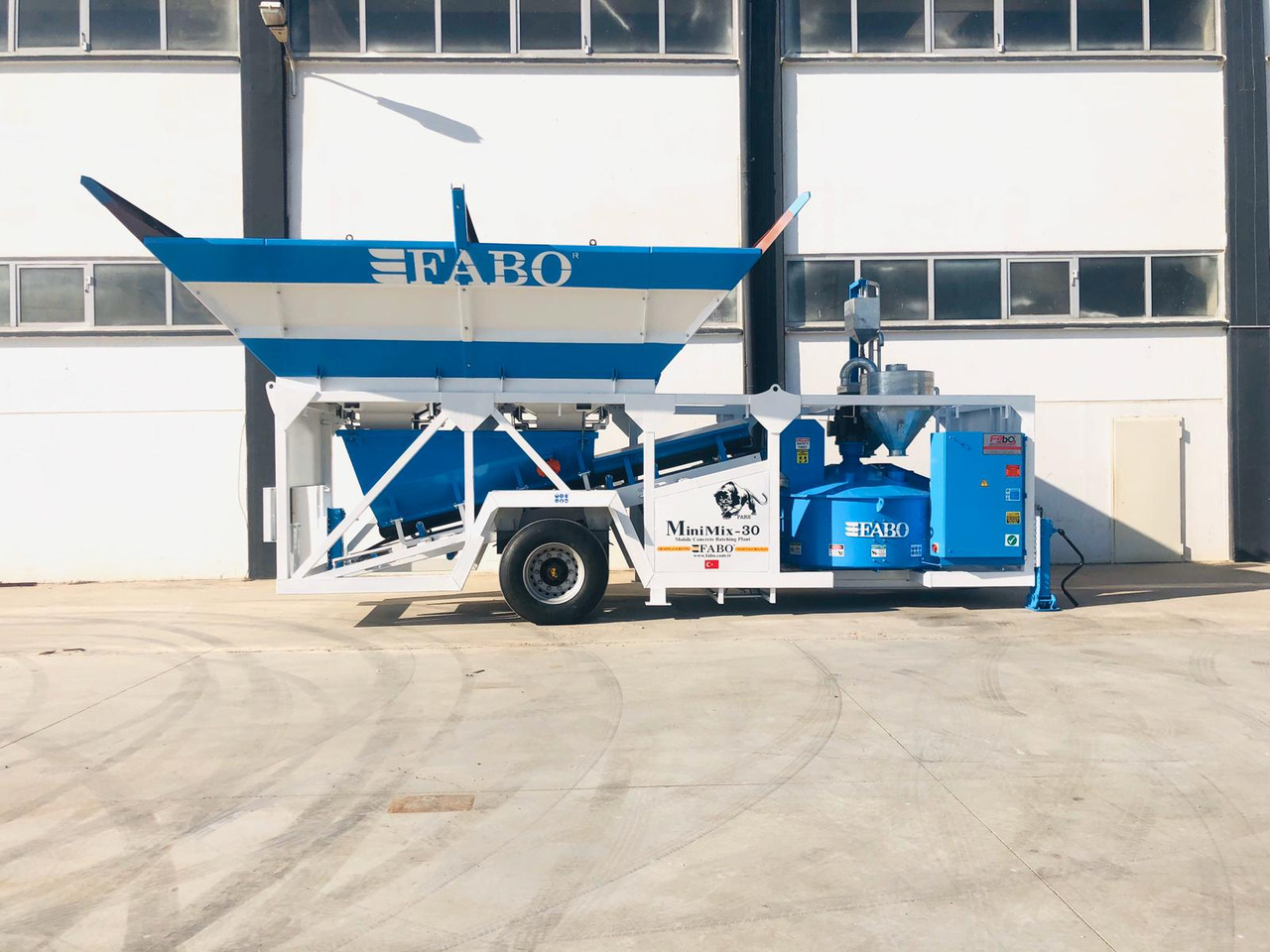

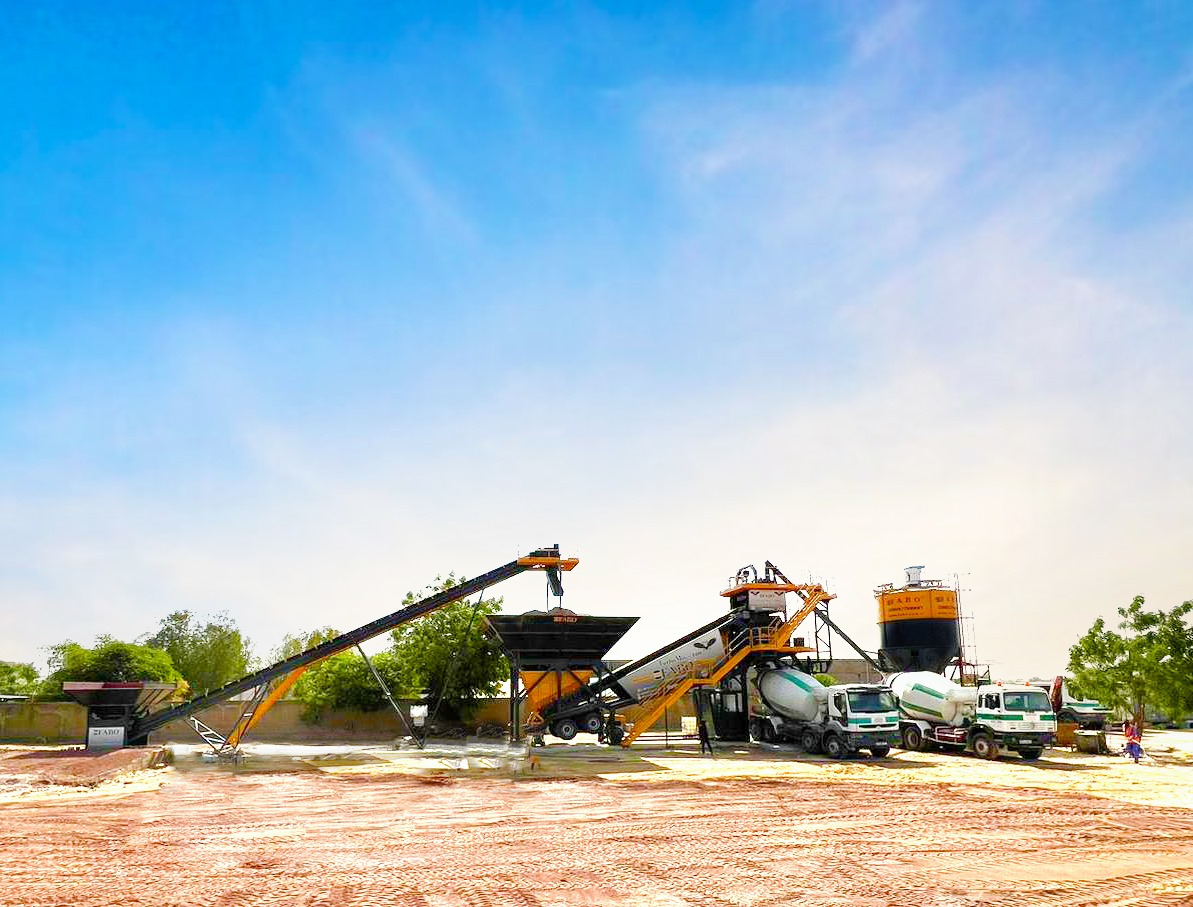

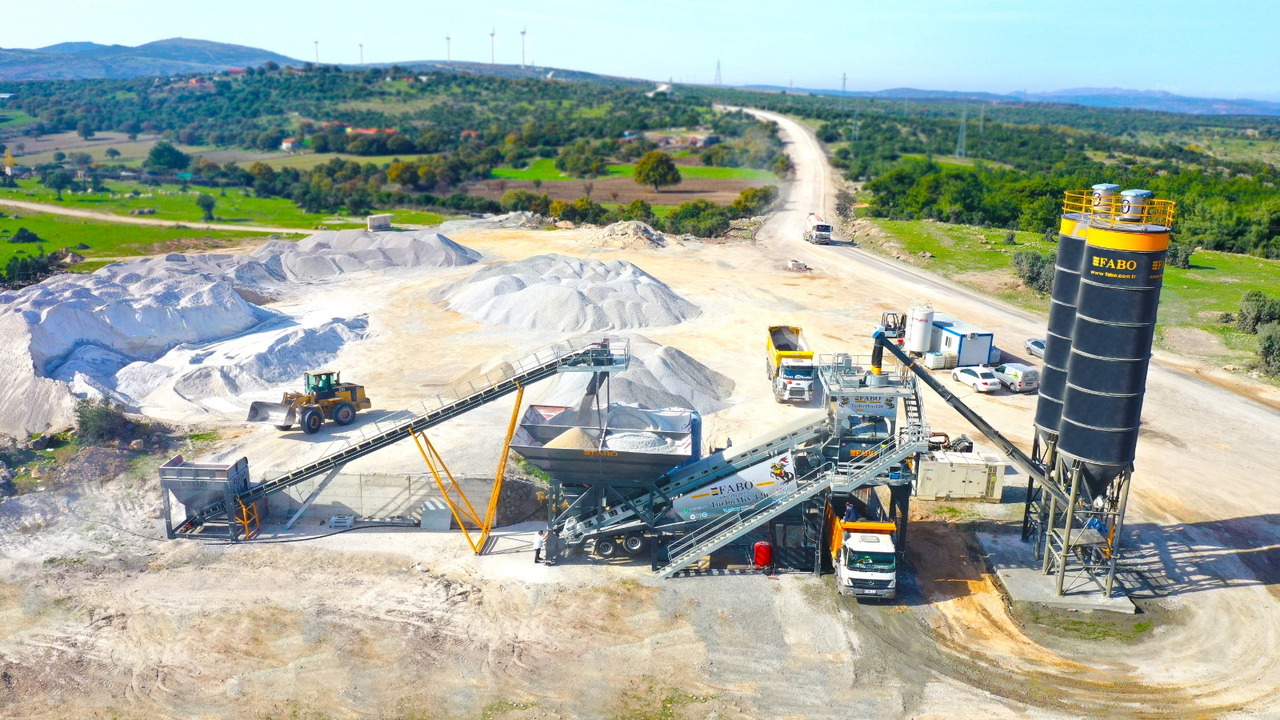

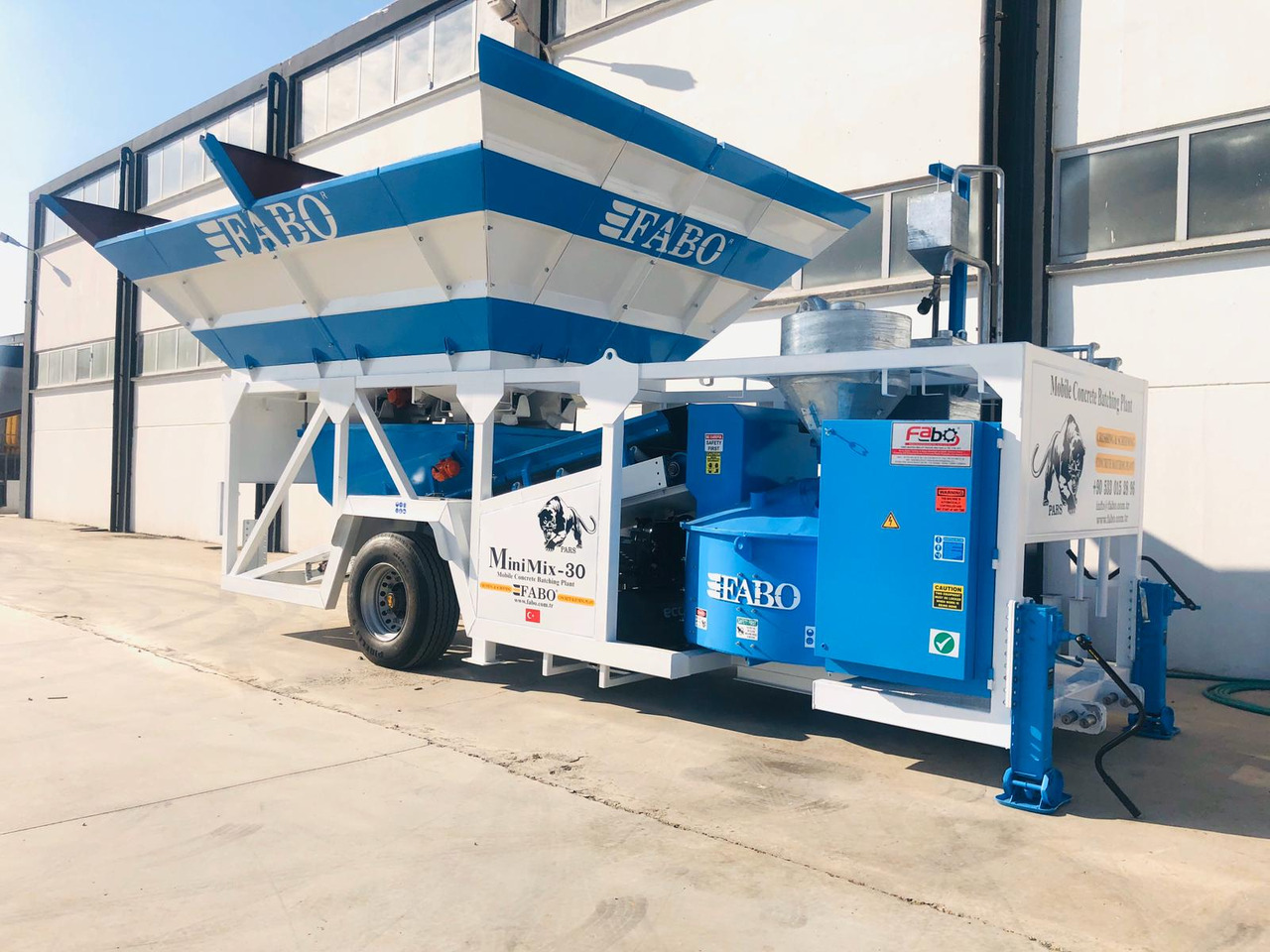

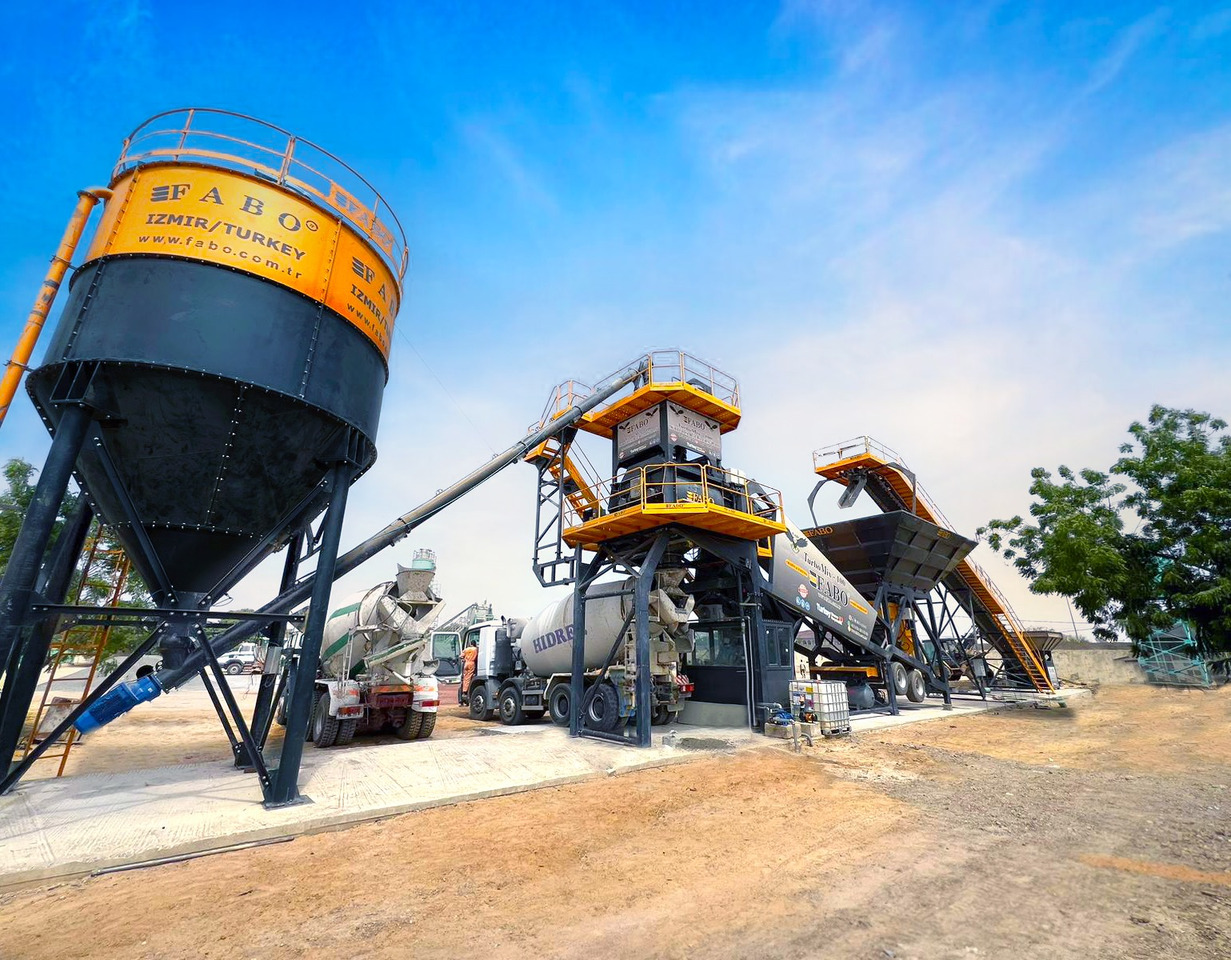

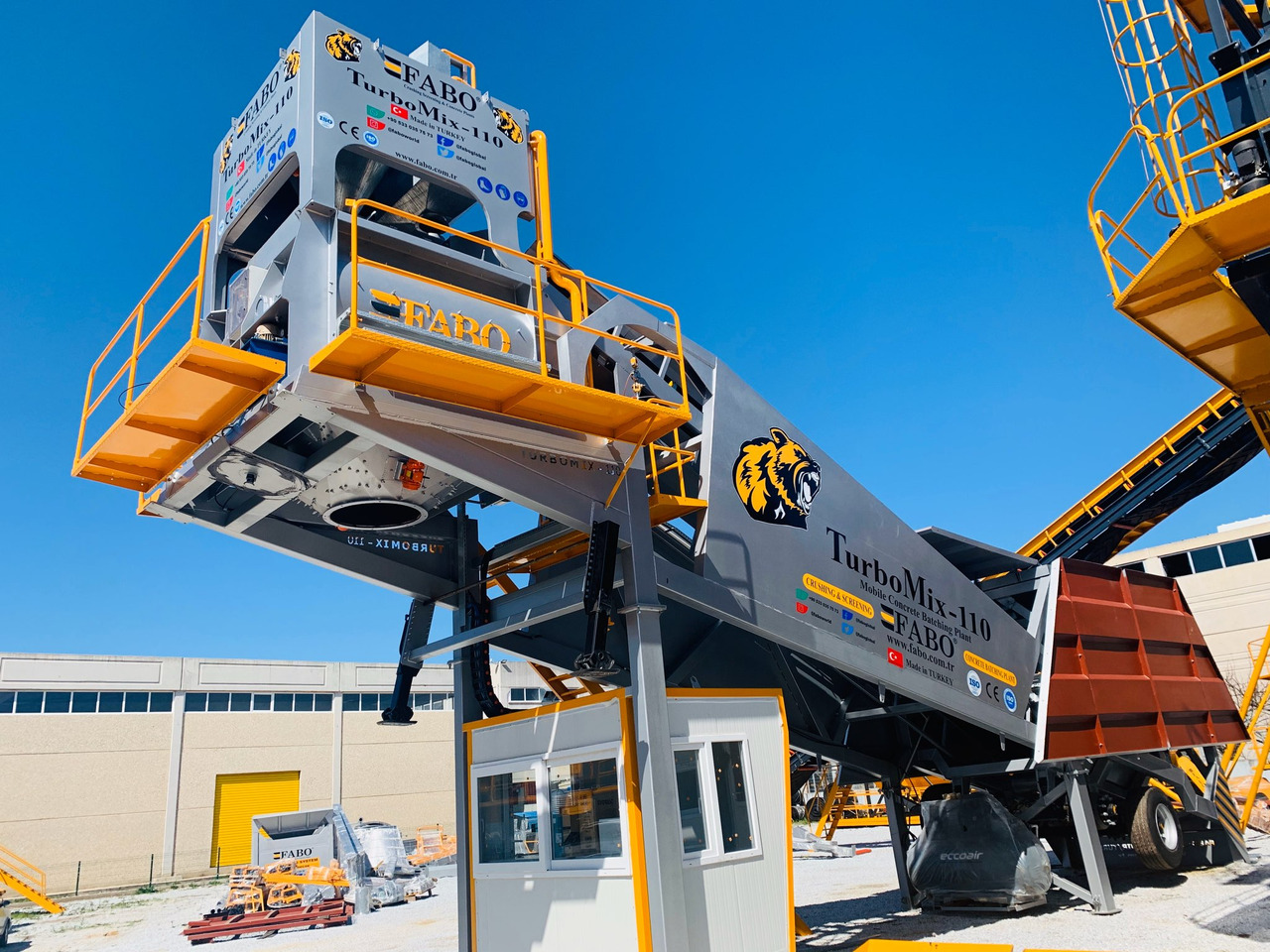

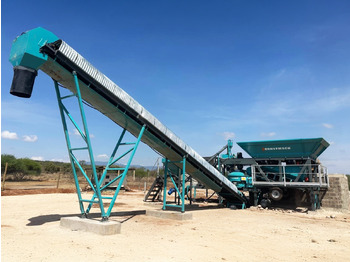

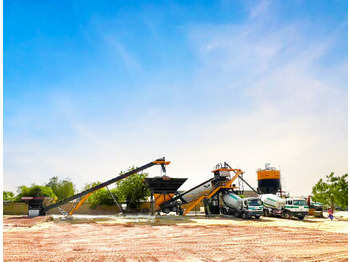

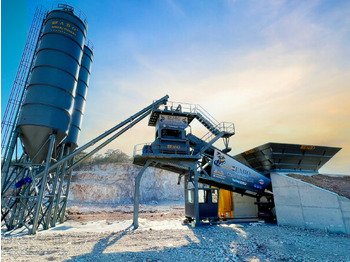

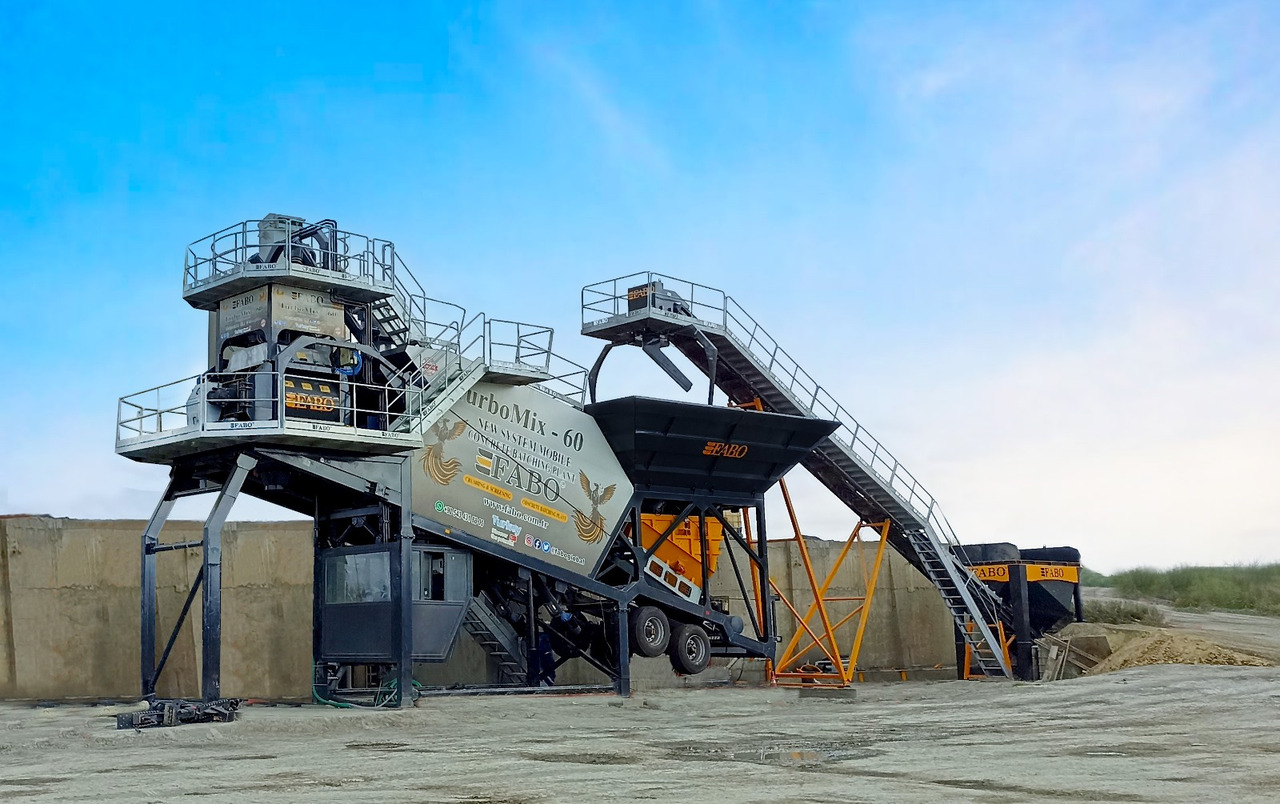

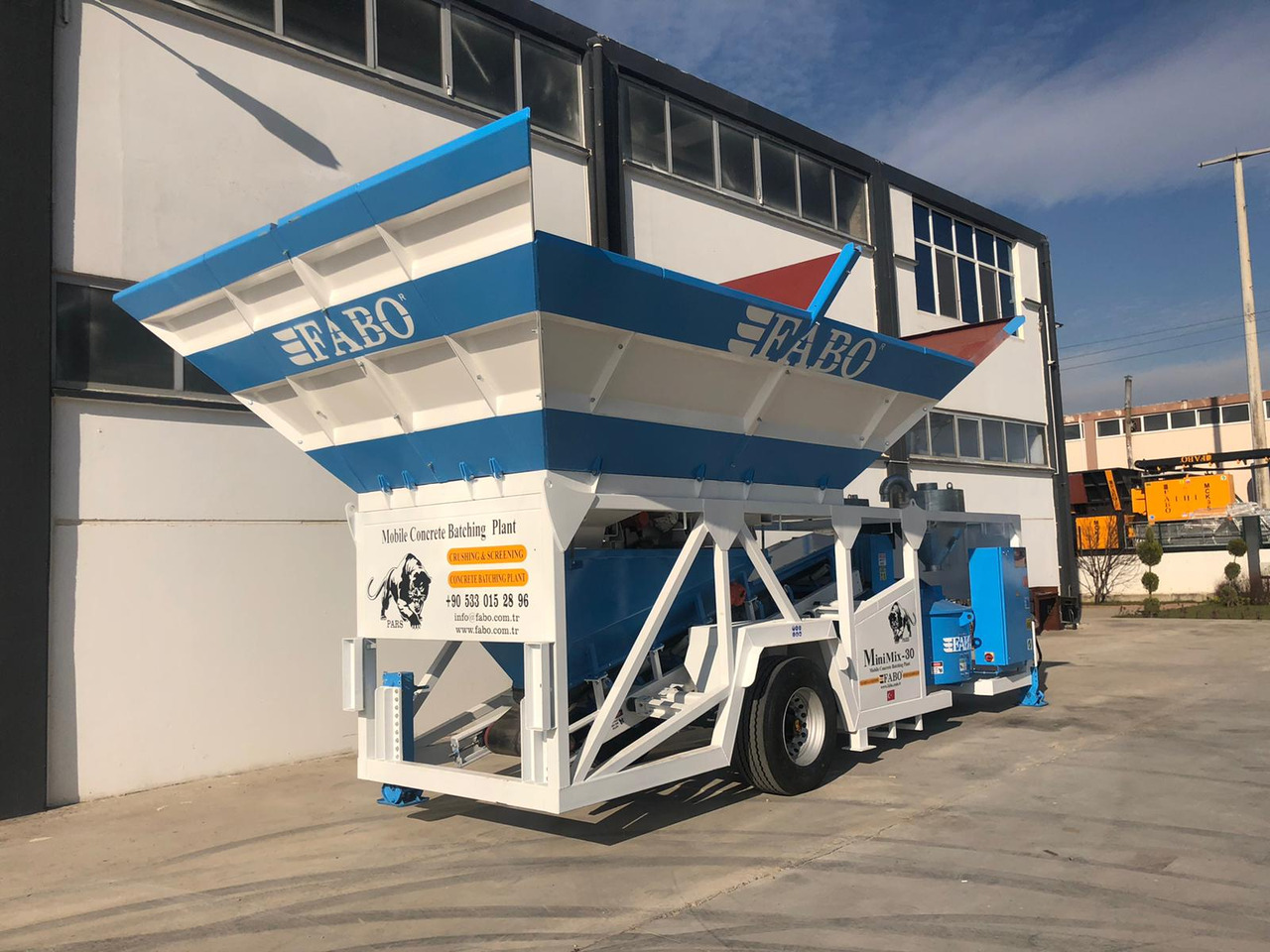

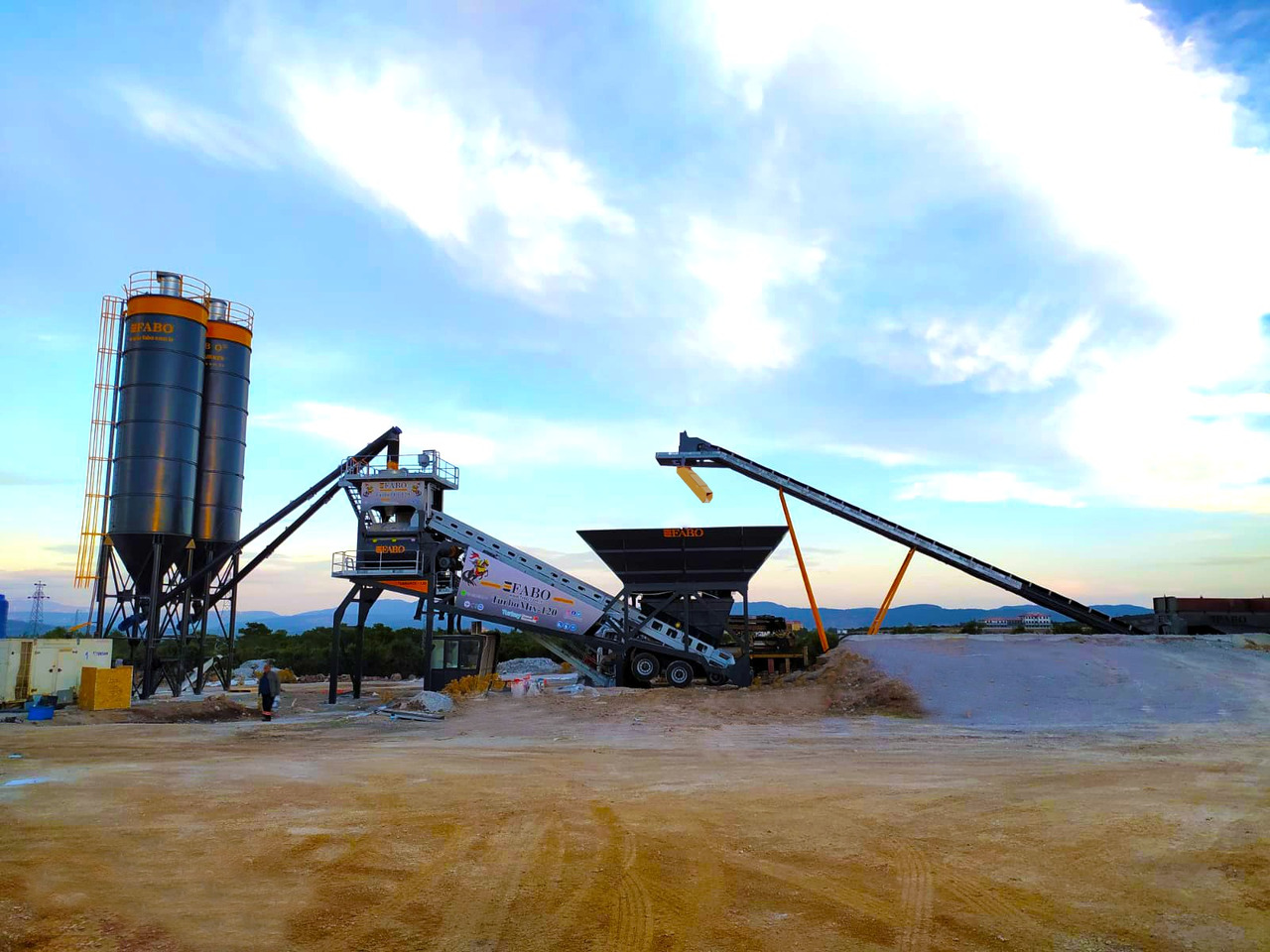

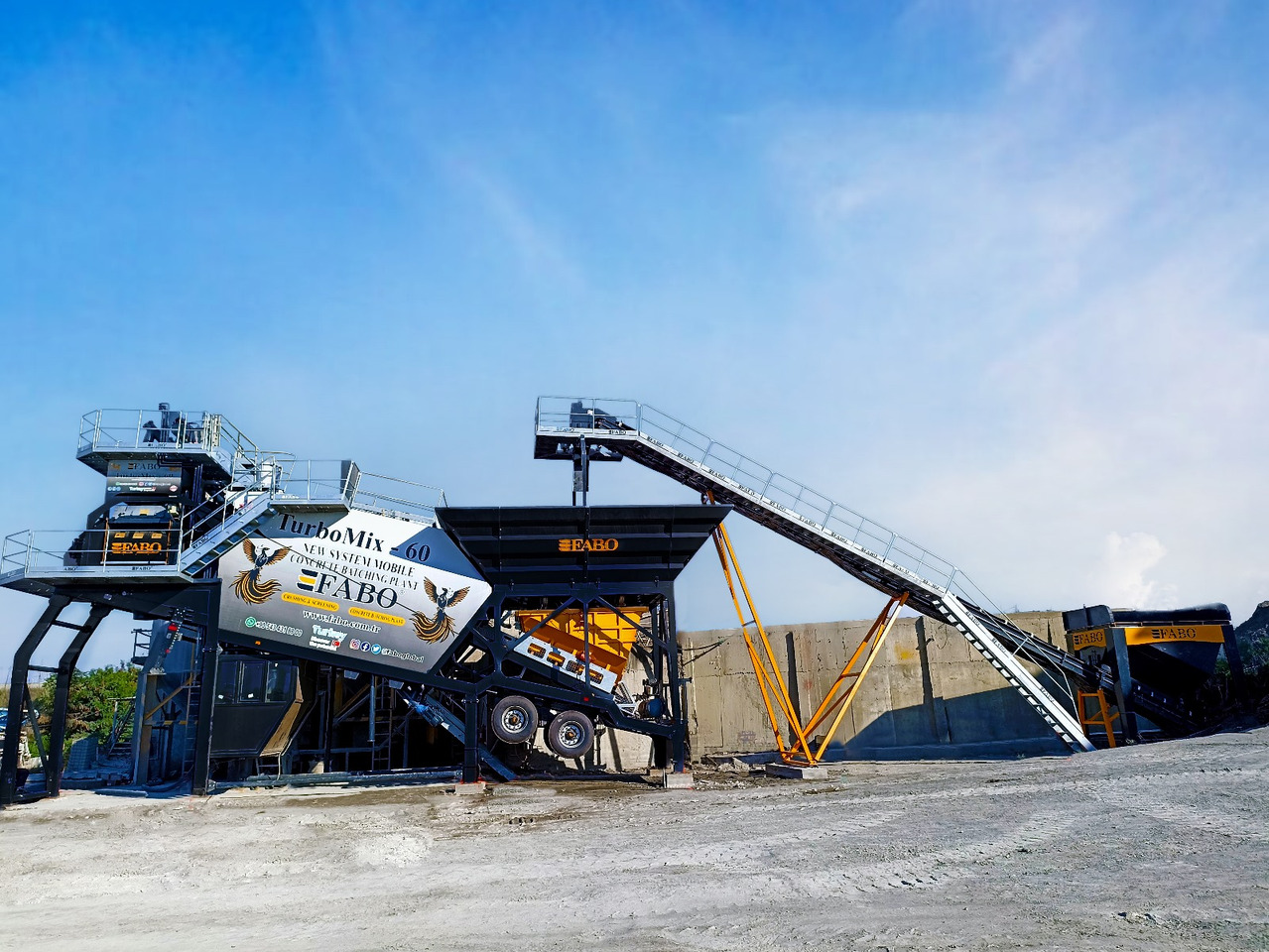

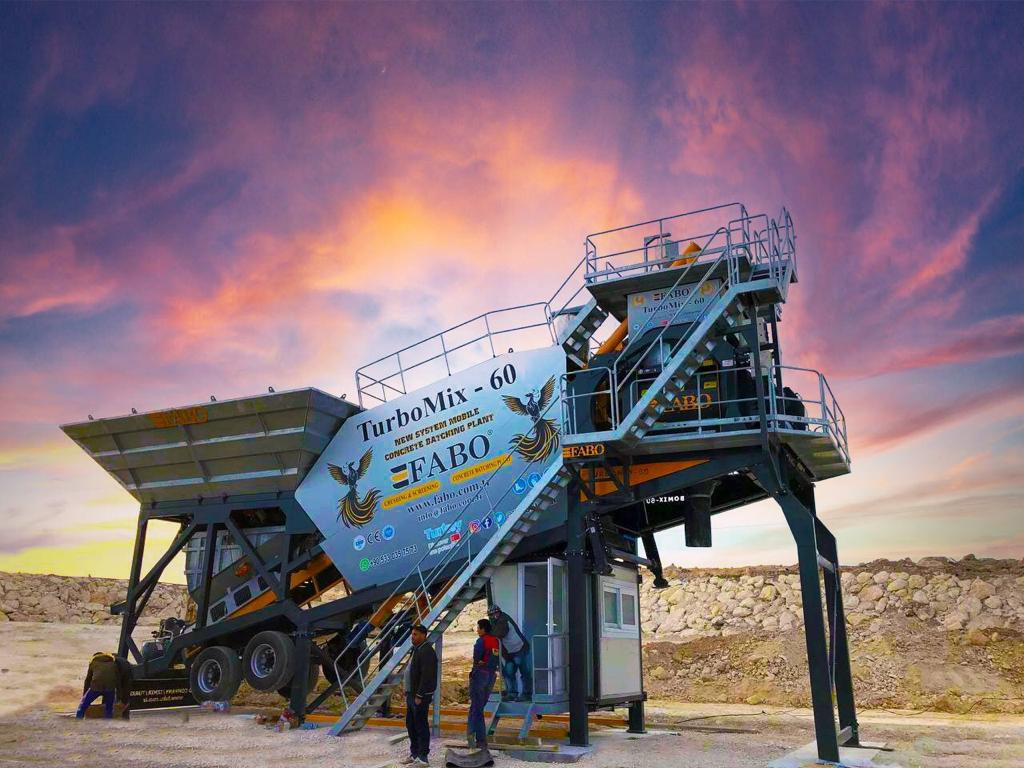

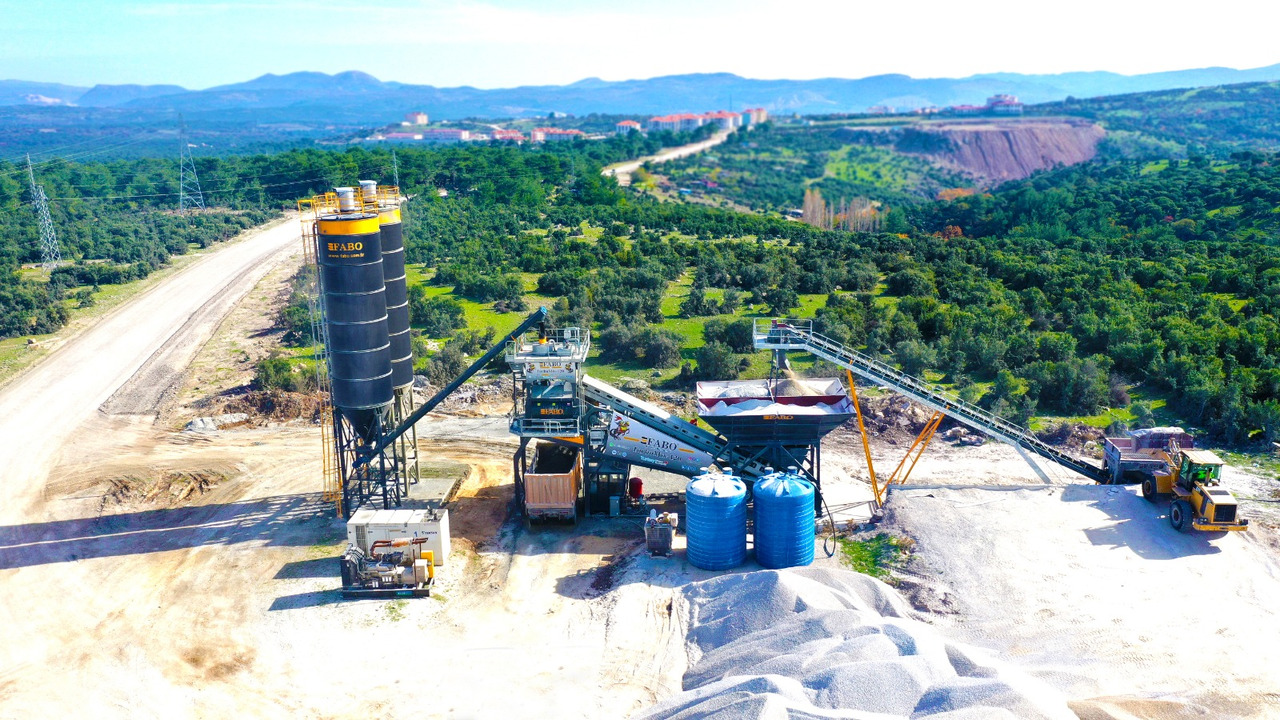

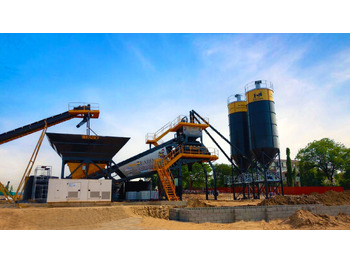

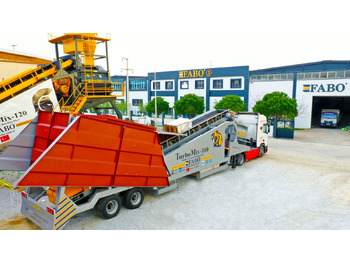

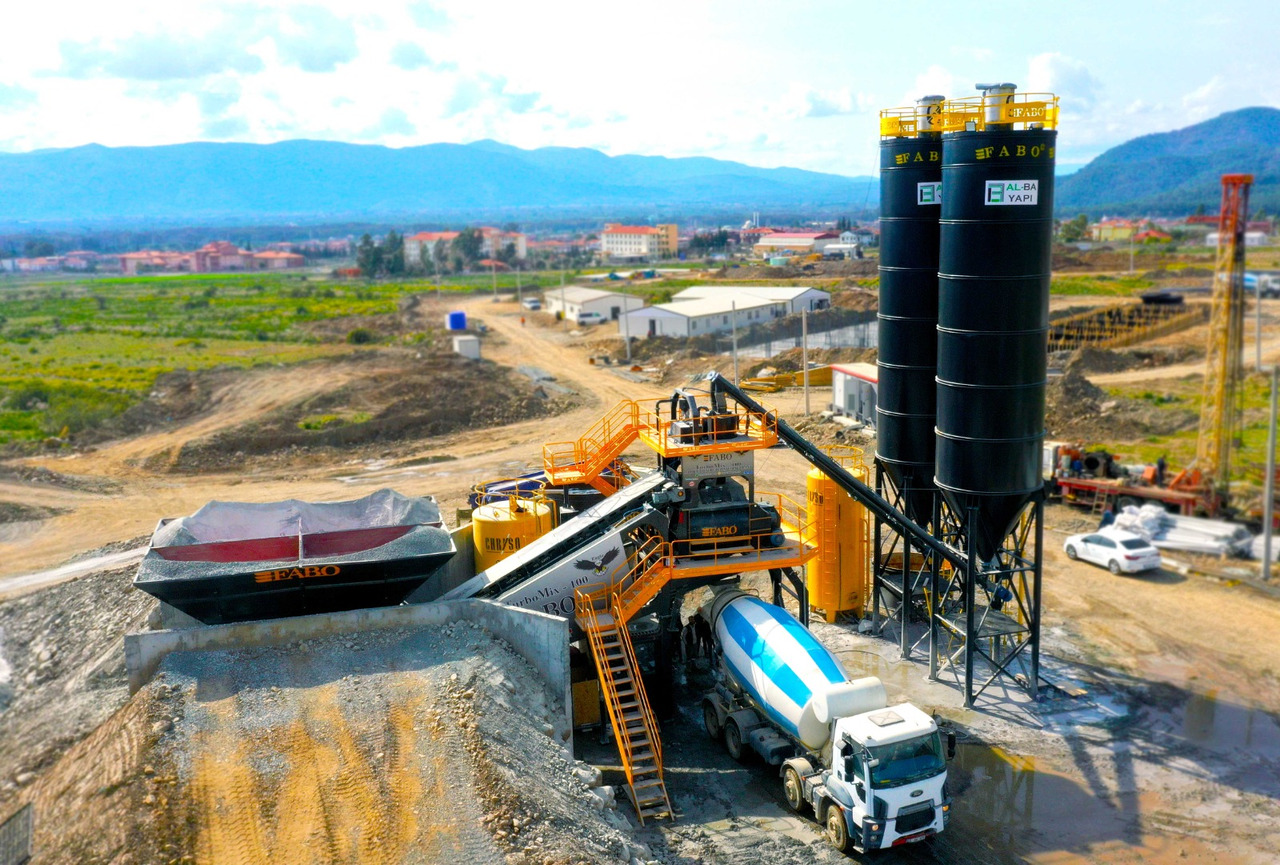

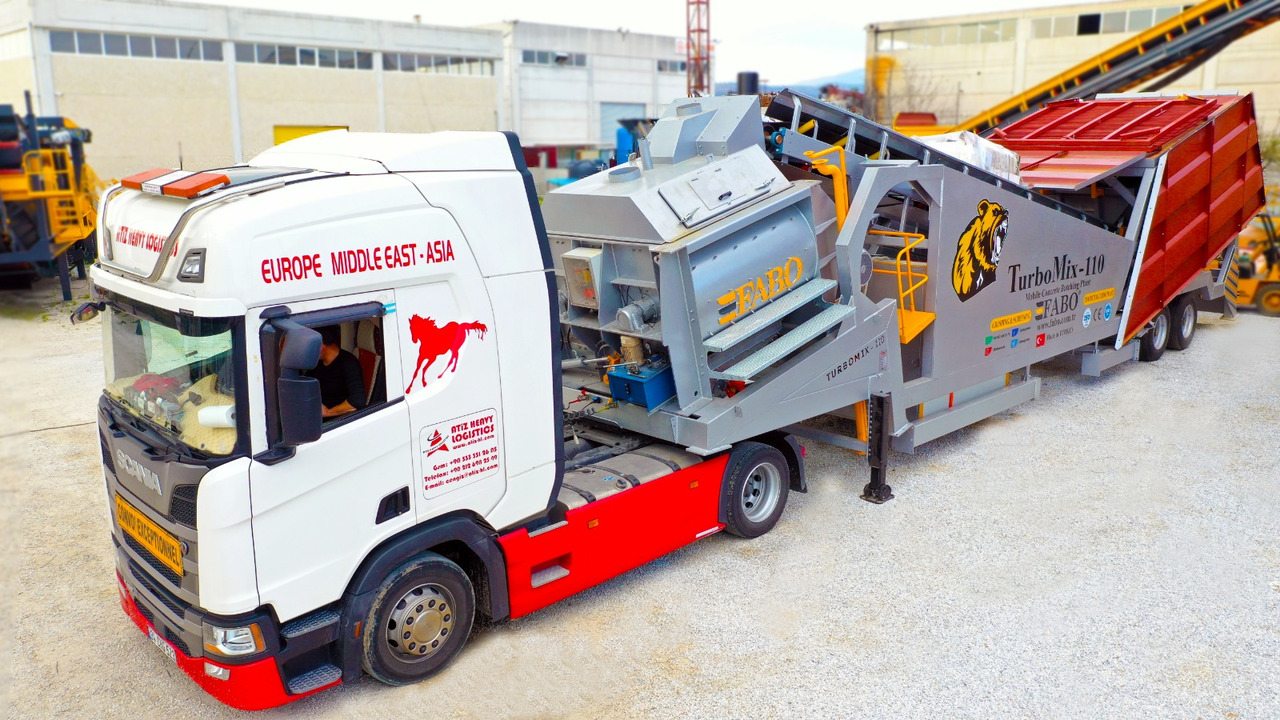

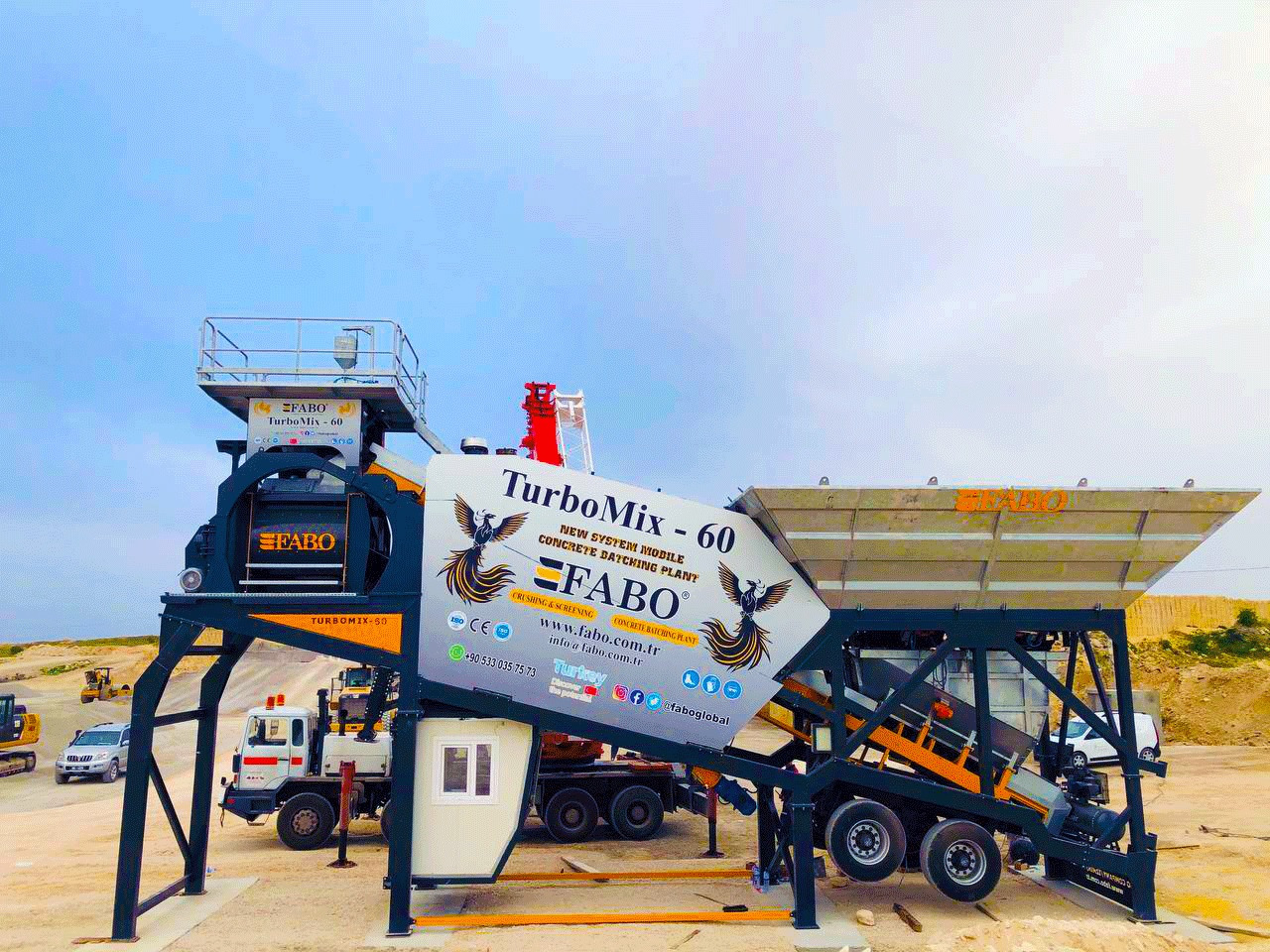

FABO TURBOMIX FULL AUTOMATIC MOBILE CONCRETE BATCHING PLANTS are ideal solutions for the projects that require short term and a compacted settlement on a dedicated job site. Since all the equipment of a concrete plant is assembled on a single mobile chassis, the plant can be moved easily by only one truck. Productivity of TURBOMIX mobile concrete plants vary from 30 m3/h to 150 m3/h.

FABO TURBOMIX series of mobile concrete batching plants have automatic control, static/dynamic Load Cell Weighing of aggregate materials and additives. Concrete plants have qualitative and strong concrete mixer, which provides high capacity homogeneous mixture.

TECHNICAL SPECIFICATIONS:

Model: TURBOMIX 120

Production capacity: 120 m3

Dimensions (length x width x height): 17500 x 3200 x 4600 mm

Mixer type: Twinshaft – 3 m3

Aggregate bunker: 4 x 25 m3

Transfer conveyor: 6600 kg

Cement weighing: 1750 kg

Additives weighing: 40 kg

Water weighing: 1000 lt

Total weight: 31460 kg

Total motor power: 145 kW

Cement silo is optional.

Turbomix 120 consists of:

• Aggregate Storage Hopper

• Aggregate Weighing Hopper

• Aggregate Transfer Conveyor

• Twinshaft Mixer

• Mixer Chassis, Walking Platforms, Ladder

• Water Weighing Hopper

• Cement Weighing Hopper

• Admixture Weighing Hopper

• Air Compressor

• Cement Screw Conveyor

• Bolted Cement Silo

• Top Filter, Safety Valve and Accessories

• Control Cabinnet

• PC and Automation System

• Control and Power Panel
