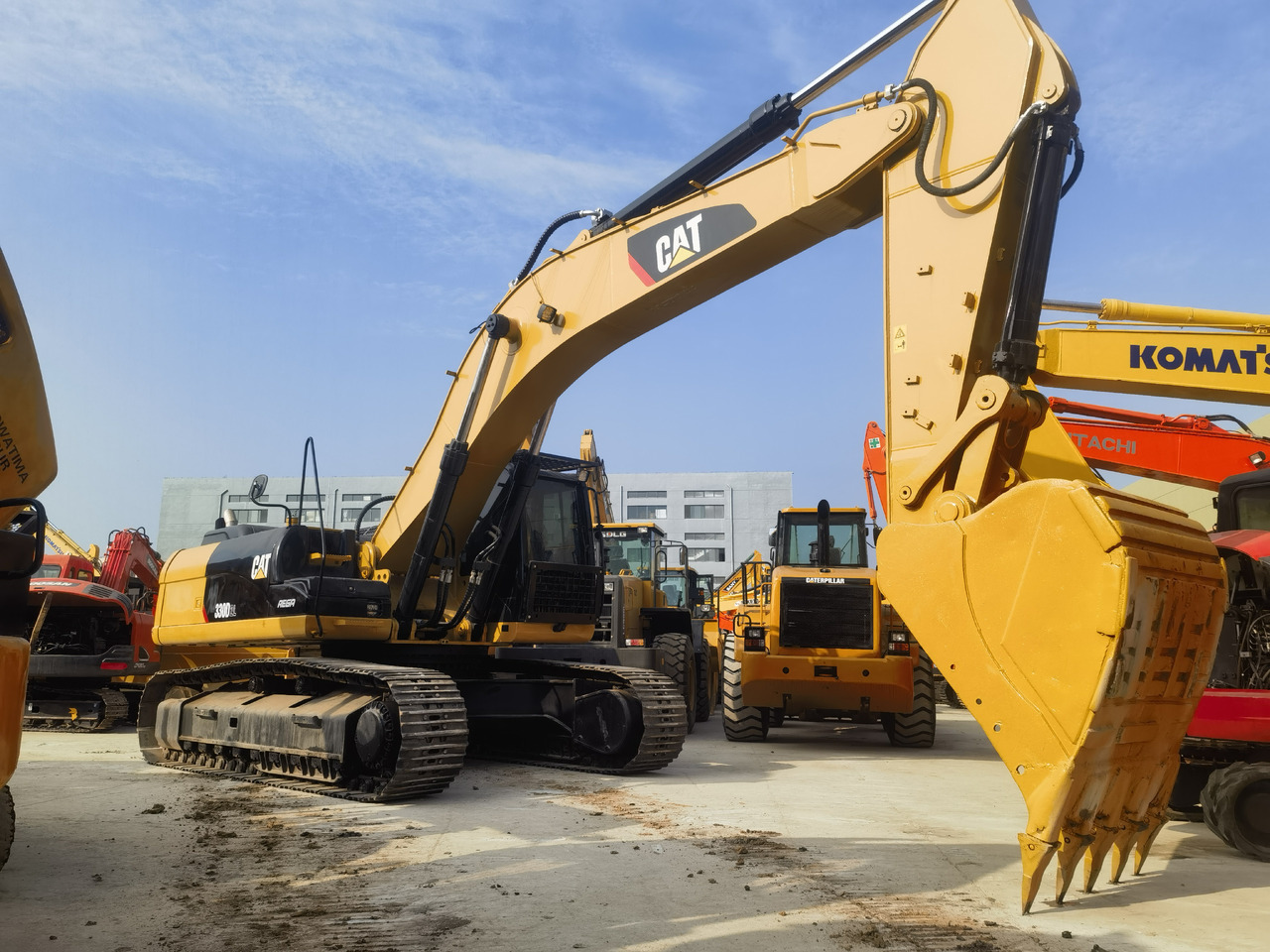

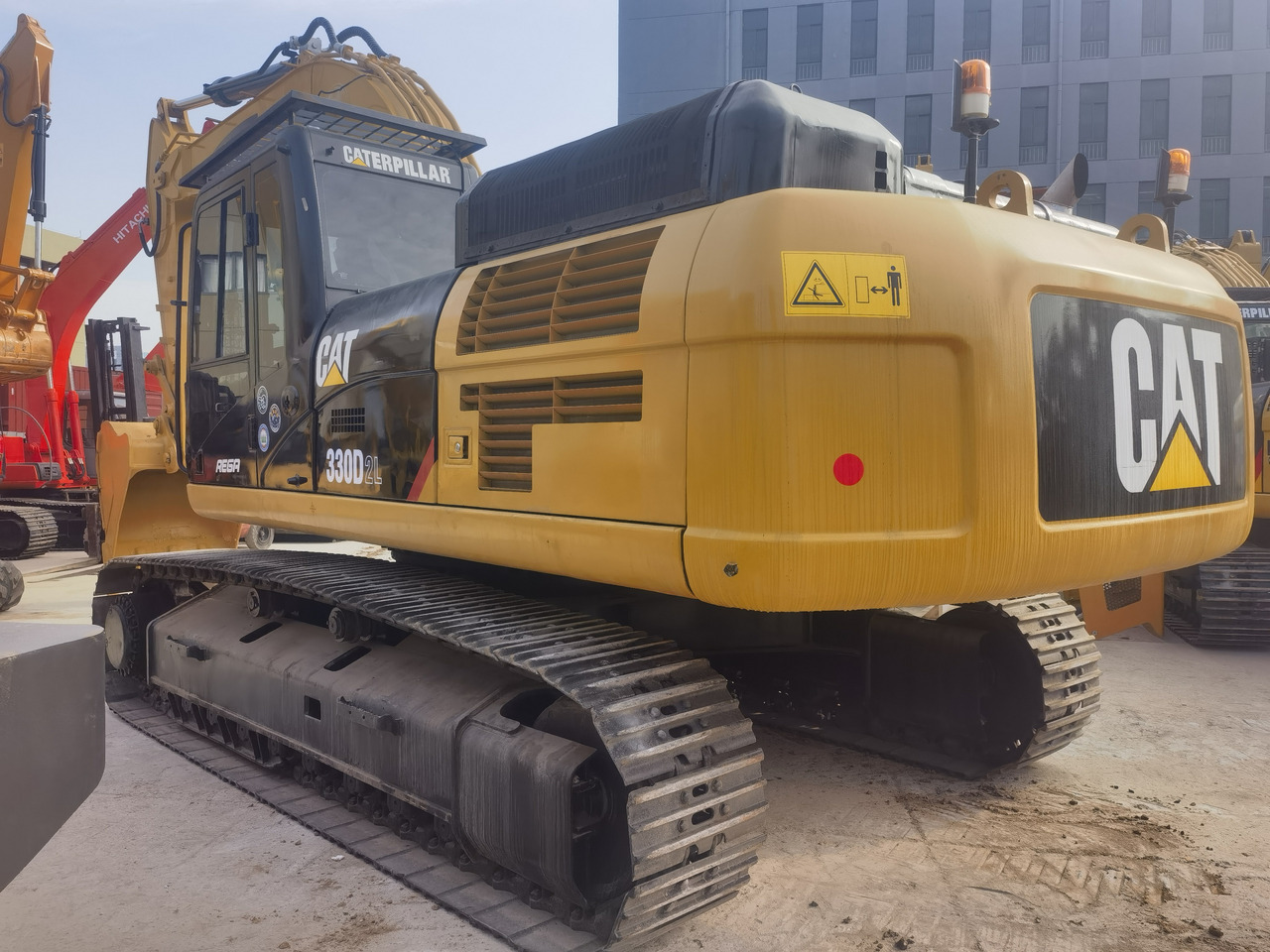

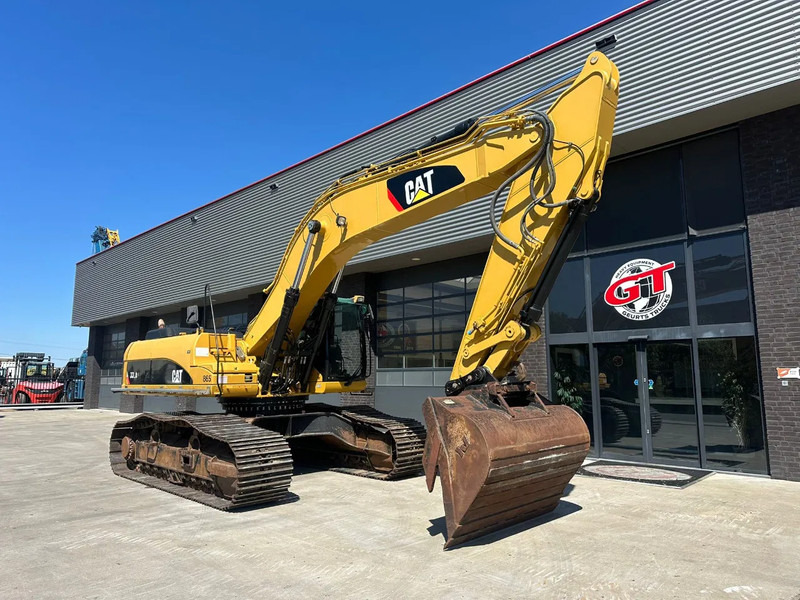

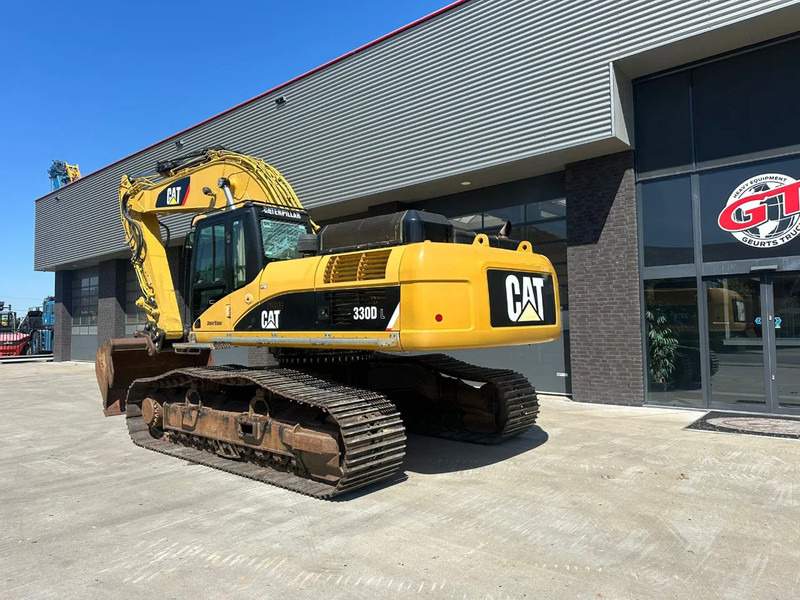

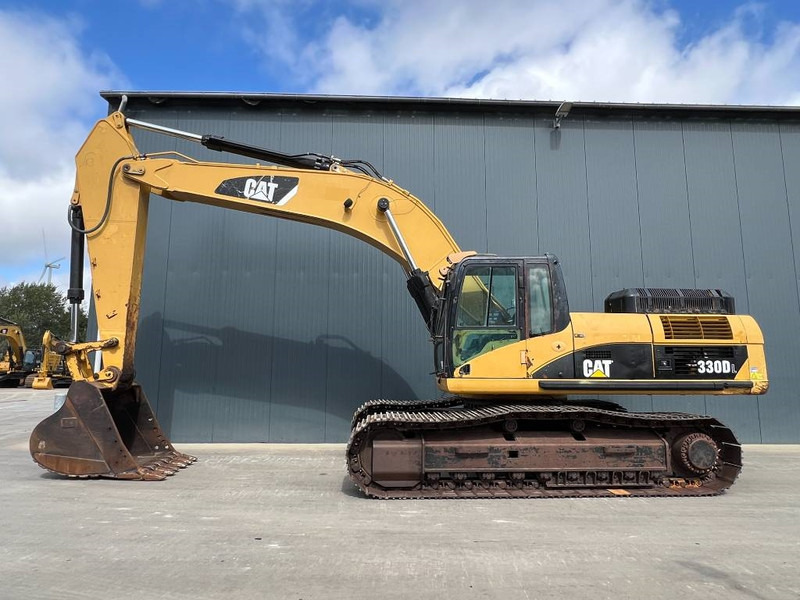

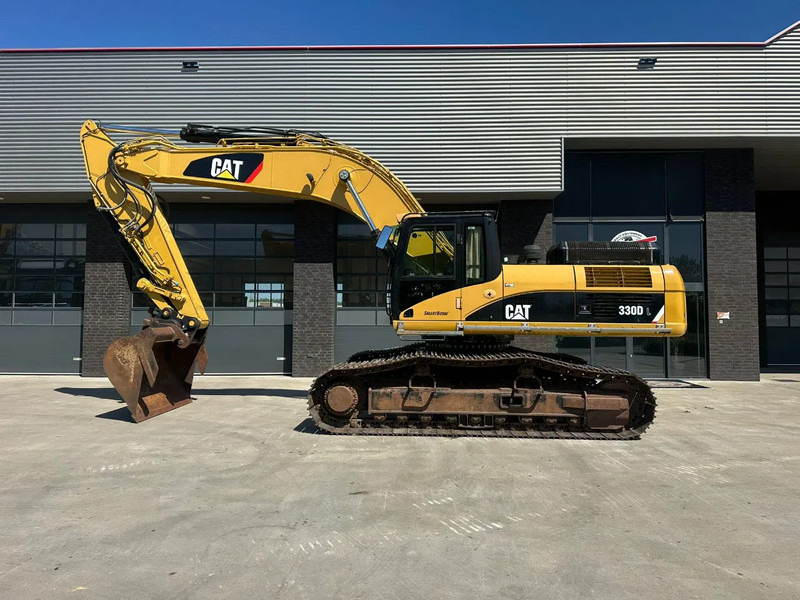

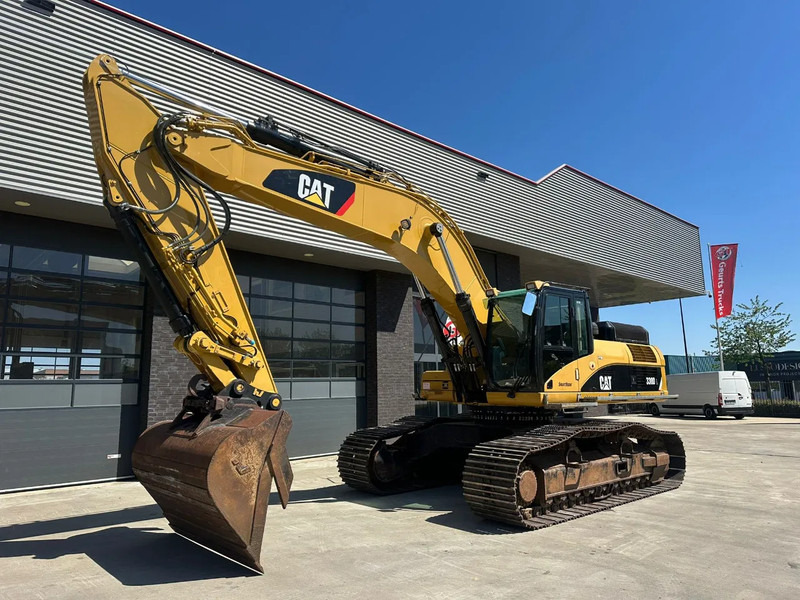

Bager goseničar CAT 330D L CRAWLER EXCAVATOR

CATERPILLAR 330D L

HEAVY DUTY UNDERCARRIAGE

MONO BOOM

HYDRAULIC QUICK RELEASE

Basic Weights & Engine:

Operating Weight: ~40,000 kg

Engine Power: 200 kW (approx. 272 HP)

Engine Make: Caterpillar

Model: C9DI

Dimensions:

Ground Clearance: ~0.45 meters

Height to Top of Cab: ~3.4 meters

Width to Outside of Tracks: ~3.2 meters

Length of Track on Ground: ~4.9 meters

Tail Swing Radius: ~3.4 meters

Undercarriage

Track Gauge: ~2.5 meters

Shoe Size: ~0.85 meters

Ground Pressure: ~70-80 kPa

Drawbar Pull: ~240 kN

Max Travel Speed: ~5.0 km/h

Hydraulic & Operational Specifications

Fuel Capacity: approx. 370 liters

Hydraulic System Fluid Capacity: ~200 liters

Cooling System Capacity: ~10 liters

Engine Oil Capacity: ~24 liters

Swing Drive Fluid Capacity: ~3.5 liters

Hydraulic Pump Flow: approx 190-210 L/min

Hydraulic Relief Pressure: ~35,000 kPa

Travel Speed: 5 km/h

Operating Weight: ~40,000 kg

Swing & Travel

Swing Torque: ~400 kNm

Swing Speed: approx. 9 rpm

Cylinder & Bores

Boom Cylinder Bore: ~130 mm

Boom Stroke: ~1,200 mm

Stick Cylinder Bore: ~105 mm

Stick Stroke: ~1,300 mm

Bucket Cylinder Bore: ~130 mm

Stroke: ~900 mm

Maximum Operating Pressure: ~34,000 kPa

Capacities & Fluids

Cooling System: ~10 liters

Hydraulic Tank: ~200 liters

Engine Oil: ~24 liters

Fuel Tank: ~370 liters

Swing Drive: ~3.5 liters

Additional information:

• Curb weight: 40000 kg
• Price On request: Yes
