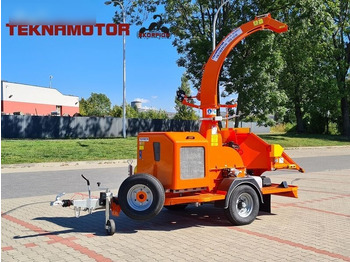

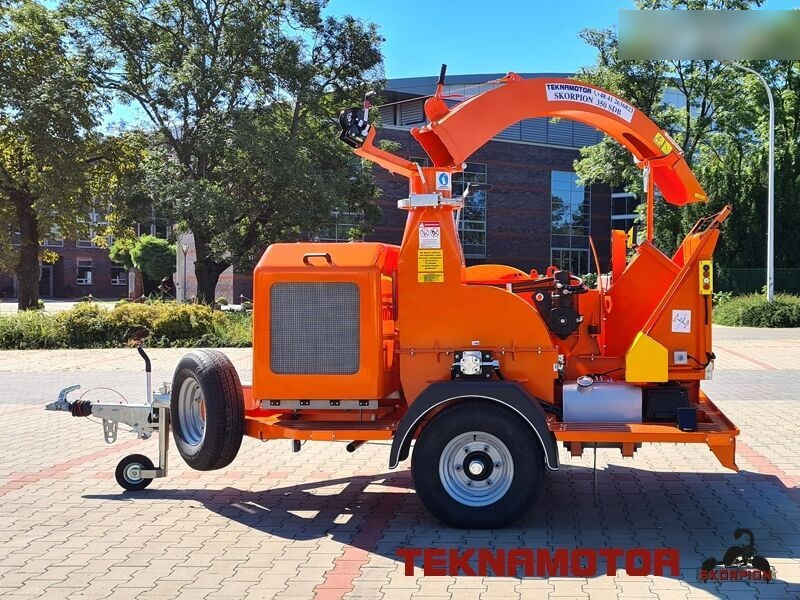

Nov Lesni sekalnik Teknamotor Skorpion 350 SDB

Skorpion 350 SDB chipper is the most technologically advanced mobile drum chipper offered for municipal and roadwork companies, as well as companies operating in the forest sector. Due to its high processing capacity (maximum diameter of shredded branches is 25 cm), it well proves itself when grinding tree trunks and extensive branches; the chipper throat is 375 mm wide and 340 mm high.

The chipper is equipped with a wood intake system comprising a toothed roller built into the arm, pulling and pressing the wood (roller diameter: 380 mm) and a loading table with a toothed track 750 mm long, preceded by a manually folding loading hatch. Such a solution allows easier loading of wood, making operators’ work more efficient and increasing effectiveness. The roller and track are propelled by a system of hydraulic engines from a hydraulic pump mounted on the chipper.

As a standard, the chipper can smoothly adjust the feeding speed of wood for shredding within the cutting range of 5 to 28 mm. Such a solution allows small chip to be produced, which after processing on hammer mills can be used for production of briquettes or pellets, whereas thick chip is an ideal material for heating purposes or for sale for industrial purposes.

A sectoral system of 2 cutting knives on the drum (a single cutting per one full rotation) guarantees that the chipper has high capability in relation to the load on the drive system. A sieve around the drum with openings of 30x30 or 50x50 mm guarantees the production of regular chip in G30 and G50 standard.

Chip is taken from under the sieve by means of two screw conveyors to a propulsive fan and ejected by it through a propulsive pipe. The propulsive pipe is embedded on a screw turntable by means of which one can easily manage the chip ejection process at a 360° angle range. The propulsive pipe is folded during transport.

The chipper drive system includes a four-cylinder, turbo-charged compression-ignition engine by Kohler or Hatz (power 74.8 HP) which meets the latest exhaust emission standard - Stage V. The engine is cooled with liquid and covered with a hood in standard. This chipper is equipped with a mechanical adapter (disk disengaging clutch) whose task is to transmit drive from the engine through a belt transmission to the cutting drum, relieving the engine crankshaft and allowing smooth activation of the chipper drive. The chipper can also be propelled by a Yanmar engine, model 4TNV98T (power 84 HP) or Fiat model FTP F32MNTX20 (power 88 HP); however, this depends on the exhaust emission standard binding in a given country.

The safety of the chipper operator is ensured by a pull-wire safety switch, which by pulling the cord in any direction makes the hydraulic feeding system stop.

The Skorpion 350 SDB chipper has received European approval enabling registration of the machine and approval for road traffic. The chipper structure is embedded on a single-axle chassis, equipped with an overrun and parking brake, as well as a towing device under the ball bolt or towing eye. In the form of a special trailer, the chipper can be quickly moved between different places.

The chipper is equipped with LED road lighting.

Standard equipment includes the electronic No-stress system, which automatically prevents the drive system from overloading by temporarily stopping the feeding system.

Overall dimensions (LxWxH) 4250 (4860)* x 1990 x 2530 (3360)* [mm]

Weight 2470 [kg]

Branch diameter logs up to 250 [mm]

No of knives 2 cutting + 1 counter-knife

Feeding speed up to 21 [running meters/min]

Chipping capacity up to 16 [stère meters/h]

Width of chips up to 28 [mm] depends on material

Way of feeding toothed roll and hydraulically driven feeder track

Drum diameter 520 [mm]

Screen 30x30 or 50x50 [mm]

Hopper dimensions (WxH) 375 x 340 [mm]

ENGINE TECHNICAL DATA

Engine model KOHLER KDI2504TCR / HATZ 4H50TICD

Displacement 2482 / 1952 [cm3]

Power of engine 74,8, [HP]

Type of cooling liquid

Type of fuel diesel

Fuel tank capacity 60 [l]

()* - dimension after the loading table is unfoled, during operation.

Standard equippment:

• Hour meter.

• Rotary ejectin tube 360°.

• Deflector.

• Independent hydraulic system.

• No-stress system.
