Diversen SBU8000 / Epirco Hammer / Scaler / Serviced Jama SBU8000 / Epirco Hamme lizing

Colour : Red

Number of cylinders : 4

Wheelbase : 464 cm.

Central lubrication

Toolbox

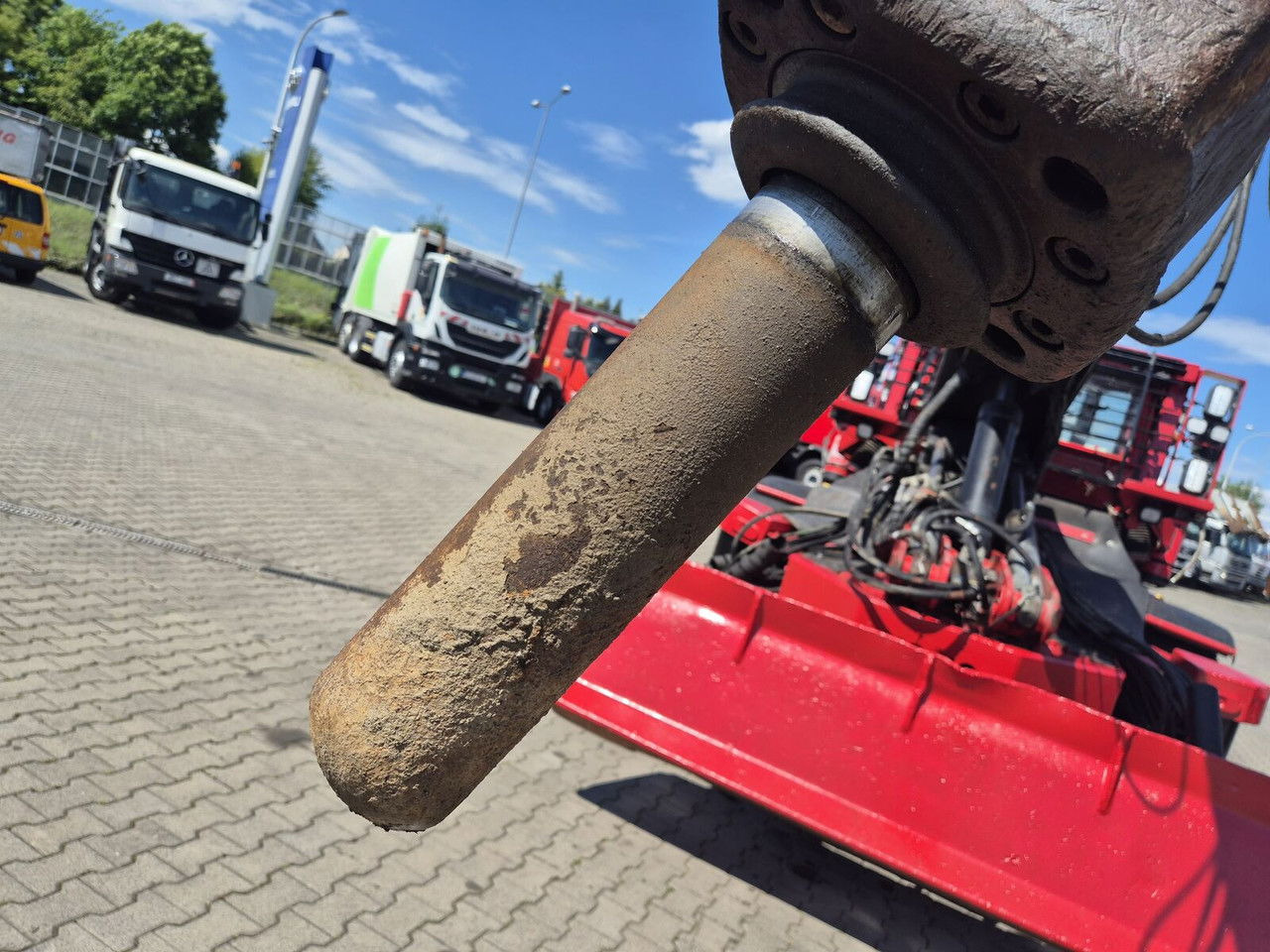

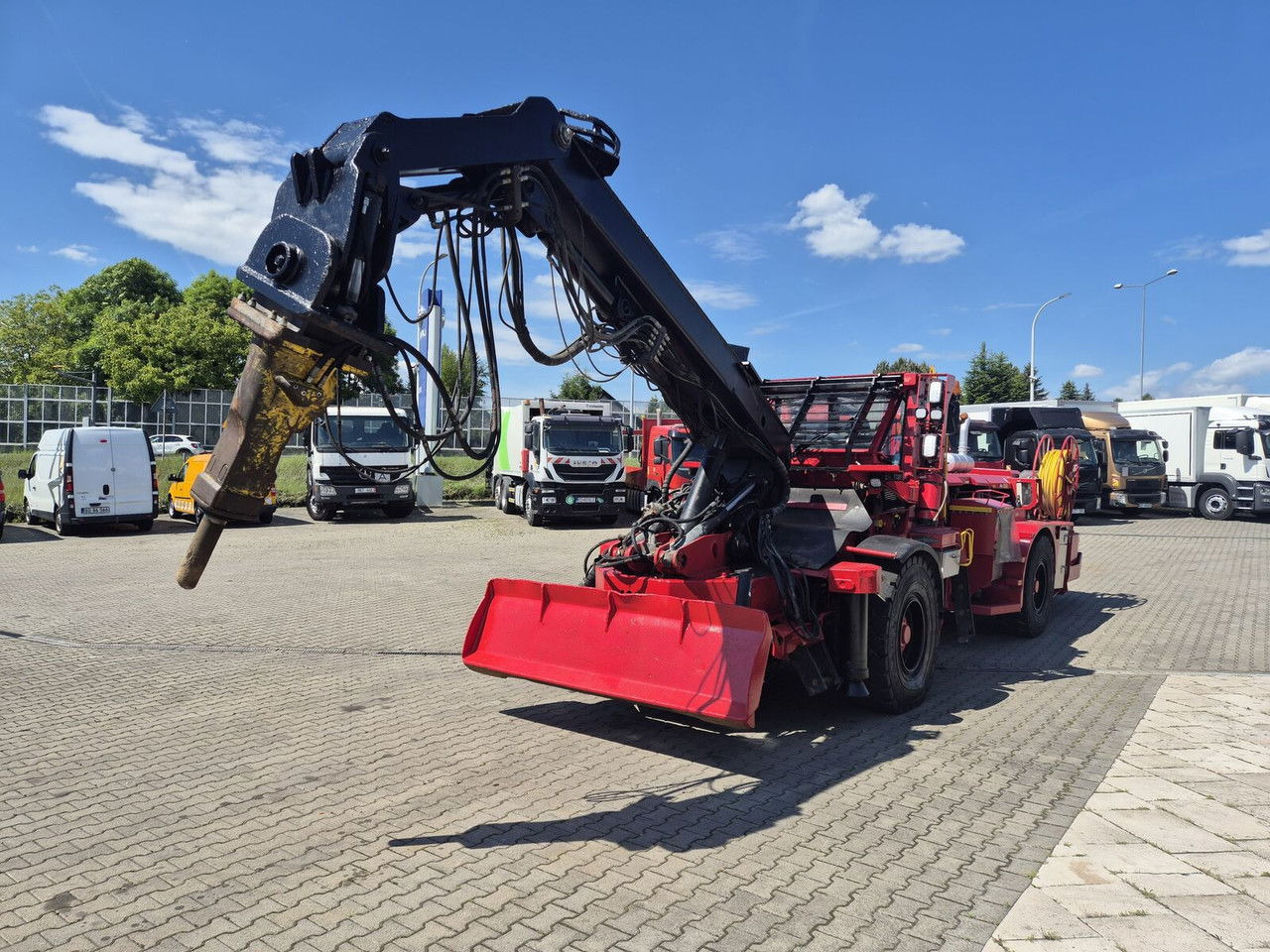

The Jama SBU 8000 machine from 2012 is a solid and proven mechanical scaler, designed specifically for work in difficult mining conditions, especially in underground workings. This model is equipped with a hydraulic hammer for demolishing rocks, which makes it an ideal tool for removing loose rock fragments and preparing workings for further work. The machine from the advertisement is equipped with an EPIROC hammer with an additional new tip!

-

Note that the cost of such a new JAMA machine from the dealer is as much as 903,000 EURO NET!

For the machine itself without any additional devices such as a demolition hammer.

-

We have 2 identical SBU 8000 machines in our offer, the one from the advertisement is from 2012, and the other from 2008 is almost 10 thousand euro cheaper!

Also in the offer:

JAMA machine for spraying concrete in tunnels

Designed for finishing and securing works in underground corridors and tunnels

High efficiency, spraying precision and large working range

Ideal for use in mining, tunneling and large infrastructure investments

-

Key technical features of Jama SBU 8000 (2008/2012)

Weight: approx. 30,000 kg

Dimensions: length 15 m, width 2.75 m, height 3.1 m

Boom reach: from 3 m below the machine level to 9 m above, and over 6 m to the sides

Operator's cabin: meets FOPS standards, equipped with an armoured windscreen and a hydraulically controlled explosion-proof cover

Drivetrain: two axles, turning radius 5.2 m

Stabilisation: four stabilizing outriggers and a blade at the front

System safety: "Danger Mode" function enabling quick withdrawal of the machine in case of danger

Comfort and ergonomics

The operator's cabin has been designed with maximum comfort and safety in mind:

Operator's seat: pneumatically suspended

Control: joysticks placed in armrests

Visibility: cabin tilts by 13° for better visibility during work

Additional equipment: shoe washer at the entrance, doors with gas cylinders enabling quick exit of the cabin if necessary

In short, we have in our offer:

2X Jama SBU8000 - 2012 and 2008

1X Jama Concrete maschine

Inspection report:

Machine in good working order

purchased from the first owner of the company who made tunnels in Sweden,

serviced on an ongoing basis at JAMY service.

The price given in the advertisement is NET and is valid for export or for companies!

For more information, please contact the seller.

Technical data – Deutz TCD 2013 L04 2V/m

Parameter Value

Engine type Four-stroke, in-line, 4-cylinder

Displacement 4.8 liters (4800 cm³)

Piston diameter × stroke 108 × 130 mm

Compression ratio 18:1

Fuel system Common Rail injection (DCR) or mechanical

Maximum power 104–129 kW (140–173 hp) at 2200–2300 rpm

Maximum torque 565–670 Nm at 1600 rpm

Minimum idle speed 650–900 rpm

Fuel consumption (at full load) 208–218 g/kWh

Weight (without accessories) Approx. 500 kg

Cooling Liquid

Emissions EU IIIA / US Tier 3

Rotation direction Counterclockwise (looking at flywheel)

Firing order 1–3–4–2
